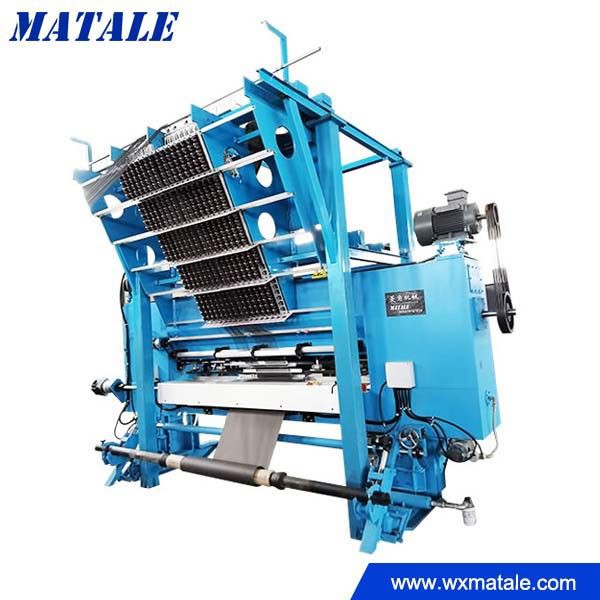

Carpet Tile Machine

Introduction

Matale is special for carpet tile machines which ranges from plain cut and loop model to tailored loop models. Our advanced carpet tile machines satisfy the demand for contract and commercial market, residential market and automotive market etc.

Carpet tile machine models

• Multi color model

• 1/6 and 1/6 gauge pattern loop model

• 1/8 and 1/4 gauge pattern loop model

• 1/5 and 1/5 graphic model

• And so on


Multi-color model allows max.6 colors pattern design. It obtain big improvement from traditional low loop burying tufting machine, more colors in better density and design presentation. Widely used for carpet tile and wall to wall carpet area.

1/6 and 1/6 gauge pattern loop model is multi loop, individual yarn control computerized tufting machine. It has double sliding needle bar with cam with gauge 1/6 and 1/6. The needle bar equipped with variable speed drive motors which achieve adjustable bedplate and adjustable needle stroke. Widely used for carpet tile and wall to wall carpet area.

1/8 and 1/4 gauge pattern loop model is also multi loop control computerized tufting machine. The pattern controlled by one small servo driving roll for each yarn feeding on 1/4 gauge, one big servo driving motor for all yarn feeding on 1/8 gauge. Widely used for carpet tile and wall to wall carpet area.

1/5 and 1/5 graphic model is also multi loop control patterned tufting machine. It obtains double sliding needle bar with servos which allows max. sliding 18 steps. Yarn feeding servos can be 2+2 or 3+3 or 4+4. This model is specially designed for carpet tile and wall to wall carpet, with good stability and high output.

Main Feature

• Machine body is made by cased steel, 4 points orientation, which ensure machine stability while running.

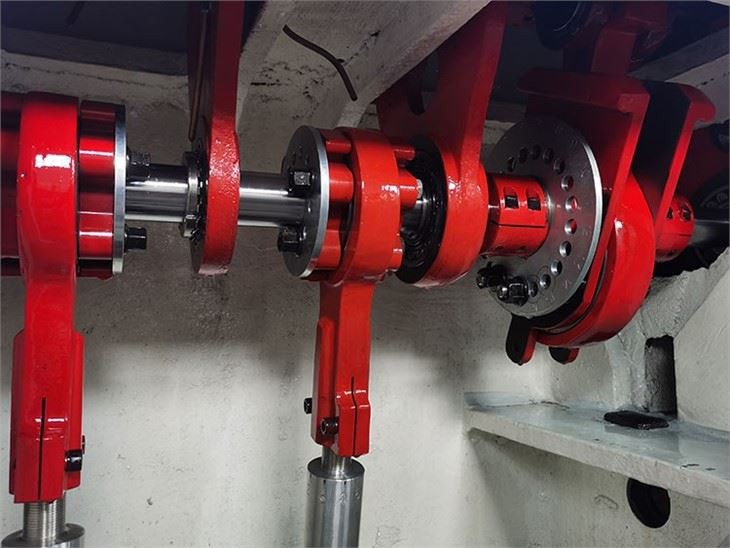

• Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.

• Equipped with lifting rings , easy for movement.

• Air cylinder device for backing roll loading.

• High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .

• By using 4 individual point s crews , machine can stand on all types of floors .

• Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.

• Overload protection, cover protections , pull wire emergency stop switch.

• Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

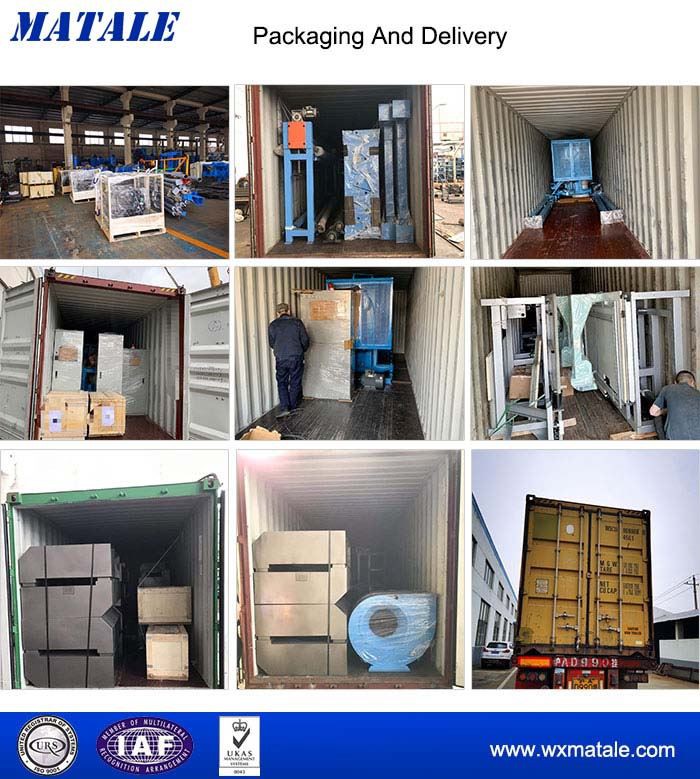

Shipping and loading

Why Choose US

First, we are professional carpet machinery designer and manufacture. We can provide whole production line for carpet making. Also provide spare parts service for the whole life.?

Second, our engineers are all skilled and full of experience. And management with ISO9001 quality system.?Always doing final Inspection?and test running before shipment.

Third, with advanced technical improvement, as one of the representative of China made tufting machine manufacture, our tufting machine achieves high level quality and perfect performance compared with top brand worldwide, but very competive price.
