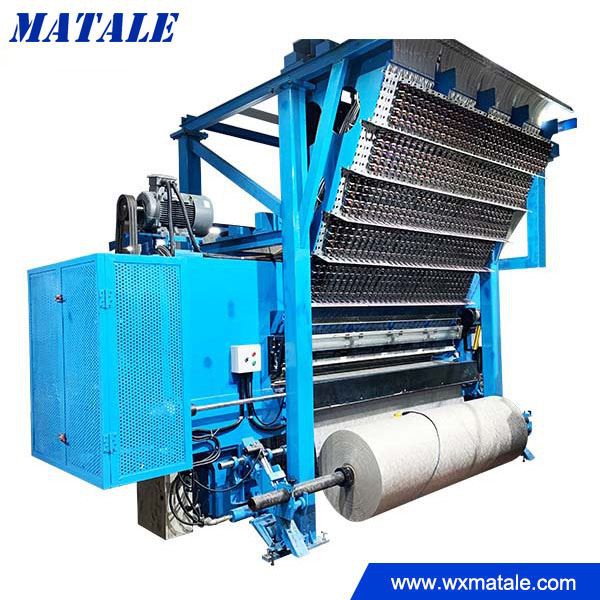

Patterned Multi Color Carpet Tufting Machine

Introduction

This patterned multi color carpet tufting machine can make maximum 6 color pattern. Big improvement from traditional low loop tufting machine, more colors in better stitch rate and pattern presentation. Widely used for carpet tile and wall to wall carpet area.

Parameters

Machine name：Multi color tufting equipment

Machine size: 2m L*W*H6.2*2.5m*3m

                       4m L*W*H8.2*2.5m*3m

Working width: 2m or 4m

Gauge: 1/10" (single side)

            1/12'' M- color Plus (double-side)

Pile height: 2.5-9mm

Mechanical speed: 800-1000RPM

Stitch density: 25-50 stitches/10cm

Total power: 2m 45kw

                     4m 60kw

High speed sliding single needle bar with servo

Customized yarn feeding servo motor

Independent control yarn feeding

Servo motor + planetary reducer feeding of primary back

Puller roller control led by servo motor

Pattern control software

Operation setting on touch screen.

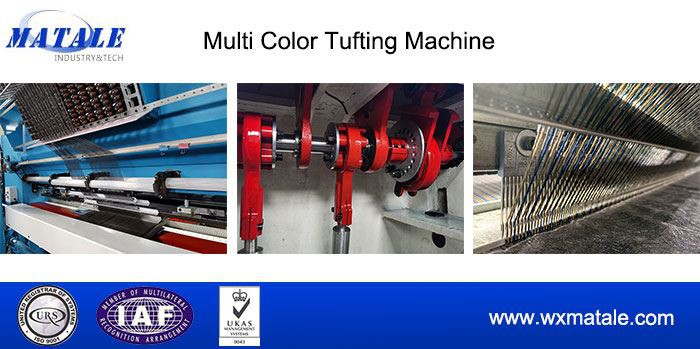

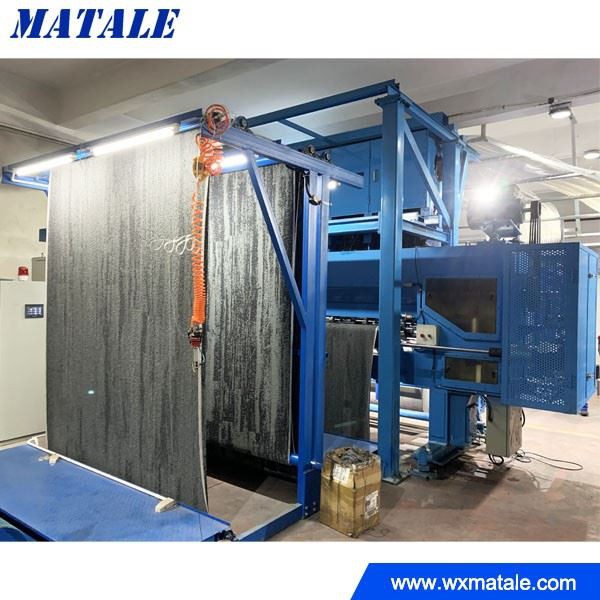

Machine Feature

● Stable structure with no internal stress deformation by using cast frame and overall annealing treatment.

● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.

● Equipped with lifting rings , easy for movement.

● Air cylinder device for backing roll loading.

● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .

● By using 4 individual point s crews , machine can stand on all types of floors .

● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.

● Overload protection, cover protections , pull wire emergency stop switch.

● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

Reference Pattern Photo

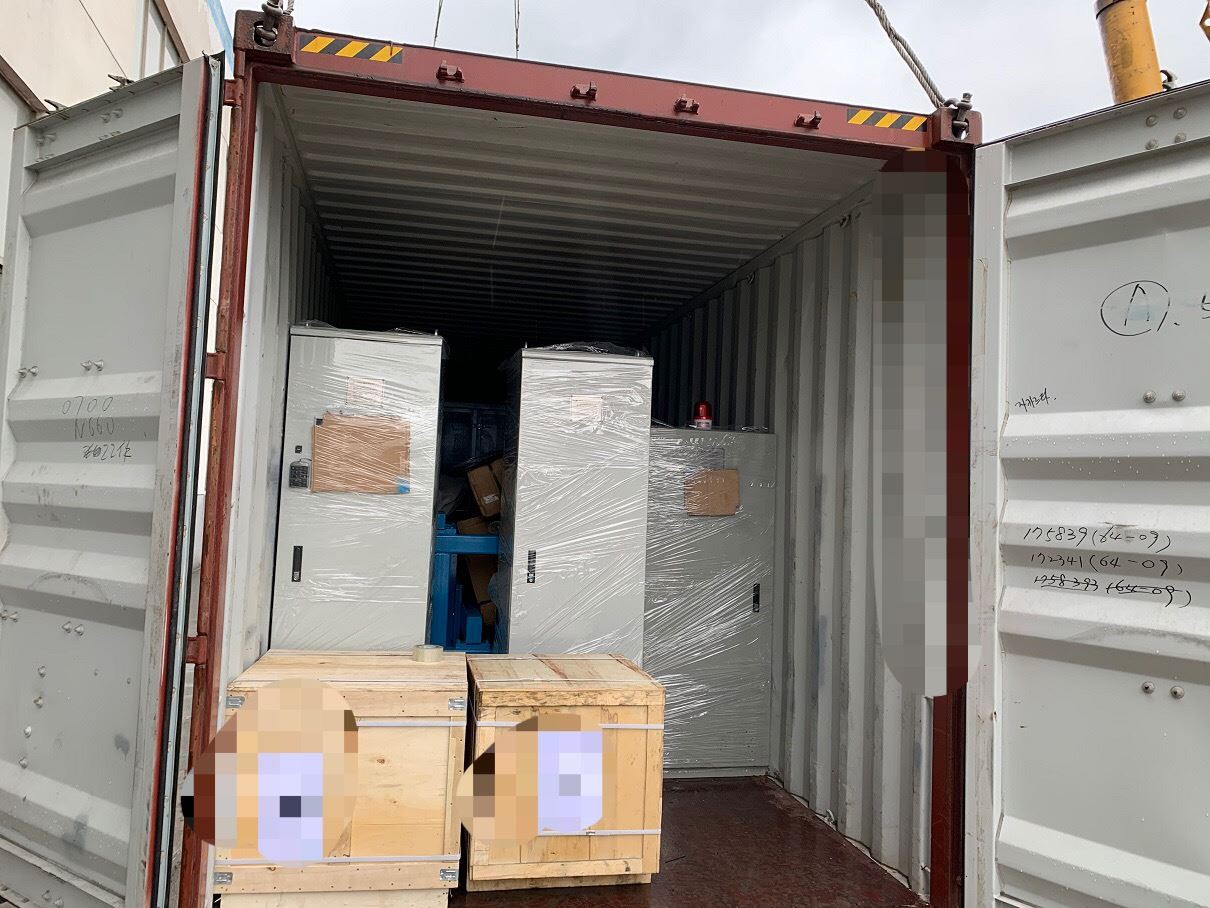

Shipping and Loading

Main machine

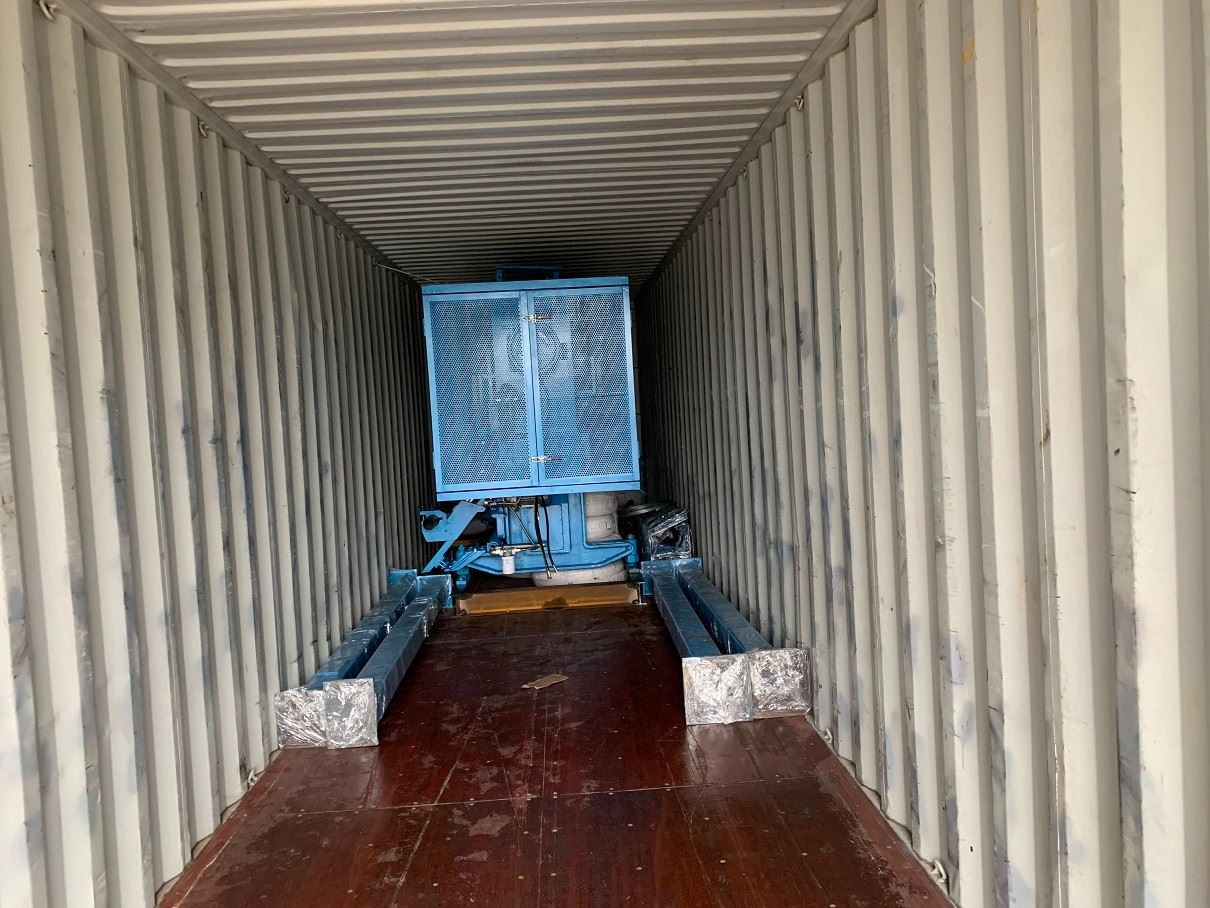

• main machine load into container direct, good fixed




Parts

• Parts packed by wooden box
