Multi-Needle Tufting Machine

Introduction

This Computerized tufting machine is widely used for making all kinds of over-tufting carpets and pile cutting&embroidery on textile fabrics.

The design transforms to the signal of each line through computer, then input to the main machine. Each air cylinder controls each single needle to tuft according to the signal. It can also do repeat designs on width.

It is controlled by industrial computer, easy operation, high efficiency and wide application.

Parameters

Machine Name: Multi-needle tufting machine

Machine size: 2m model L*W*H 5.9*1.5*2.7m

4m model L*W*H 7.8*1.5*2.7m

Working width: 2m or 4m

Gauge: 3/16" or 5/32"

Pile height: 6-18mm

Mechanical speed: 600 RPM

Stitch density: 25-60 stitches/10cm

Total power: 2m 40kw

4m 55kw

Servo motor + planetary reducer feeding of primary back

Roller puller controlled by servo motor

Design control software

Operation setting on touch screen

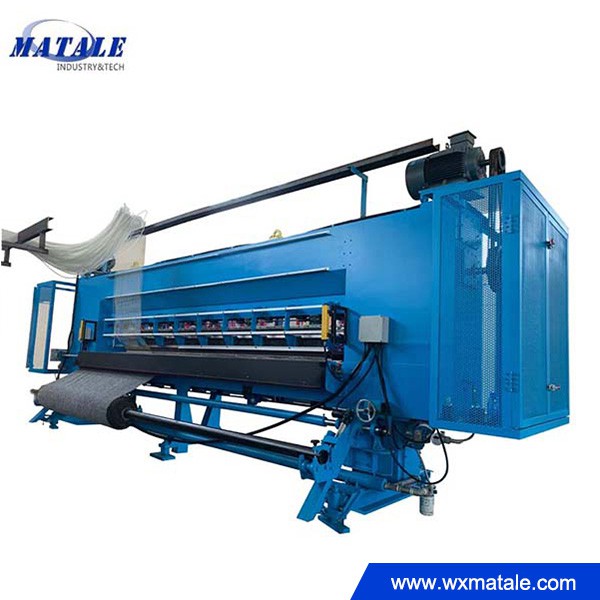

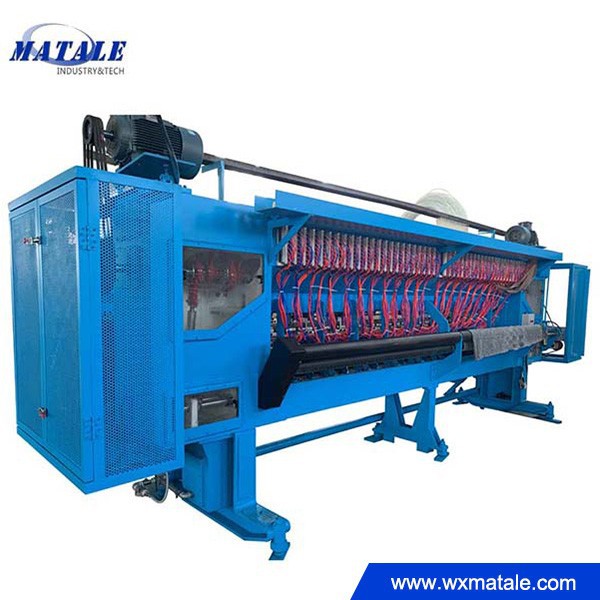

Product photos

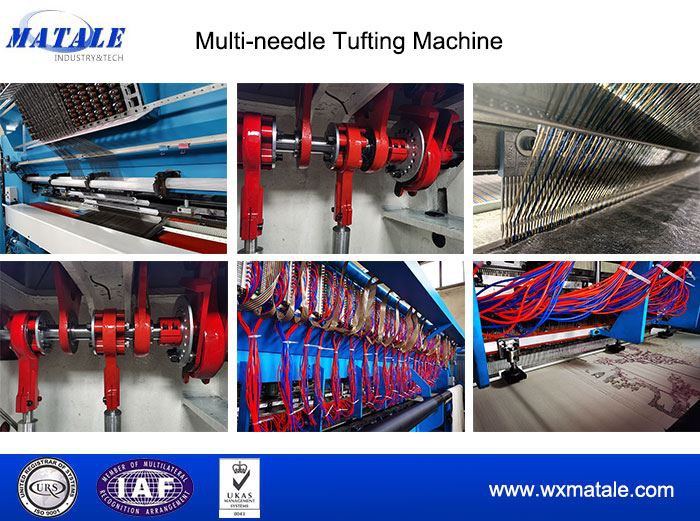

Machine Feature

● Double Needle Tufting Machine,Stable structure with no internal stress

● Deformation by using cast frame and overall annealing treatment.

● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.

● Equipped with lifting rings , easy for movement.

● Air cylinder device for backing roll loading.

● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .

● By using 4 individual point s crews , machine can stand on all types of floors .

● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.

● Overload protection, cover protections , pull wire emergency stop switch.

● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

Our Company

Matale Industry& Tech is a professional design and manufacturer of China's carpet making machines, such as carpet tufting machines, ICN tufting machines and tufting gauge parts etc.

FAQ

1.Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?

A:It’s always my pleasure, hotel booking service is available.

2. Q:How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,however it is charged. Any problem, you can call us directly.

3. Q:Is your price competitive?

A: Only good quality machine we supply. Surely we will give you best factory price based on

superior product and service.

4. Q: why choose us?

A: We are professional design and manufacturer of China's carpet making machines, such as carpet tufting machines, carpet back coating machines and tufting gauge parts etc., and obtained the certificate of ISO9001.
