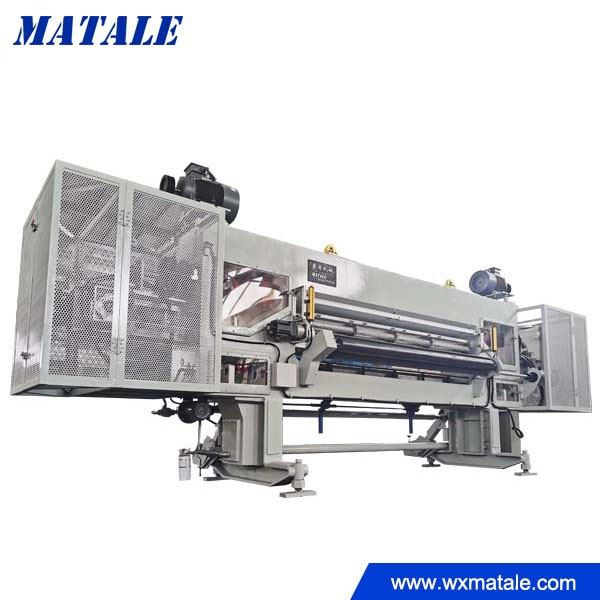

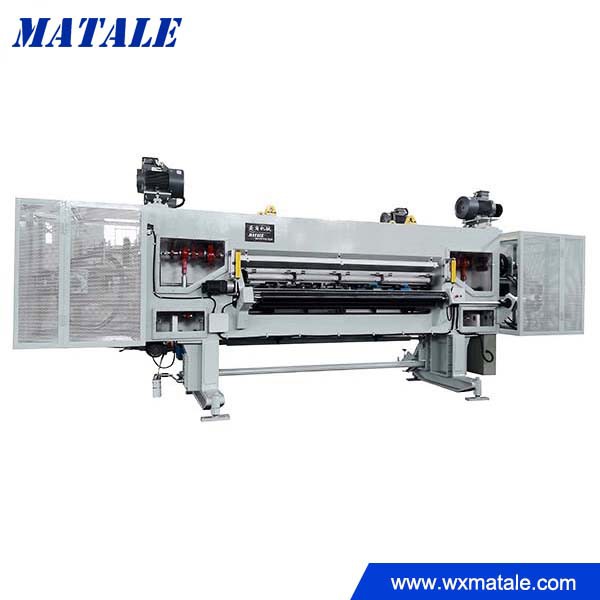

Chenille Mat Tufting Machine

Introduction

Chenille Mat Tufting Machine is basically loop pile tufting machine. It is widely designed for produce chenille mat. Have shift needle bar or non-shift needle bar type.

Parameters

Machine size:

2m  L*W*H5.8*1.5m*2.5m

4m  L*W*H7.8*1.5m*2.5m

Working width: 2m or 4m

Gauge: 5/32" or 1/8" or 1/10" or 5/64"

Loop pile height range: 5-15mm

Mechanical speed: 1300RPM

Stitch density: 25-60 stitches/10cm

Total power: 2m 28kw

4m 40kw

Optional sliding needle bar or jute mover

Servo motor + planetary reducer feeding of primary back

Roller puller controlled by servo motor

Operation setting on touch screen

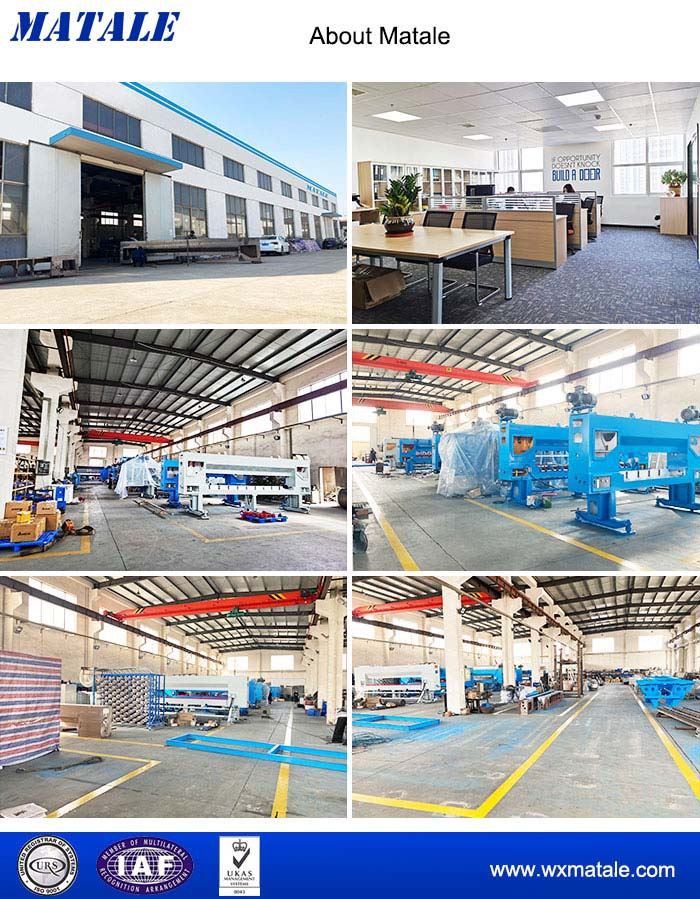

Company profile

By focusing on the development of tufting technology, Matale aims to provide better quality and better service to our customers in the flooring industry.

Matale has full range of tufting machines from basic plain loop, plain cut series, multi loop series, LCL FRS series, ICN series and other patterning tailor-made machines for all applications from wall to wall, residential and contracted tiles.

Proudly made in China, Matale will always be committed to the research and development on all unique tufting machines.

Shipping and loading

Why Choose US

First, we are professional carpet machinery designer and manufacture. We can provide whole production line for carpet making. Also provide spare parts service for the whole life.?

Second, our engineers are all skilled and full of experience. And management with ISO9001 quality system.?Always doing final Inspection?and test running before shipment.

Third, with advanced technical improvement, as one of the representative of China made tufting machine manufacture, our tufting machine achieves high level quality and perfect performance compared with top brand worldwide, but very competive price.
