Introduction

This 1/12 gauge pattern loop tufting machine is dual-gauge machine with 1/8'' gauge  loop pile base on the front and 1/4 gauge independent yarn control on the rear.

This pattern loop tufting machine can create any repeat size with free flowing patterns. It is widely used to produce wall to wall carpet tiles, it provides a dense and long-lasting product.

Parameters

• Machine name: 1/8'' and 1/4'' multi loop tuftingmachine

• Machine size: 2m-L*W*H6.4*2m*2.8m

•                      4m-L*W*H8.6*2m*2.8m

• Working width: 2m or 4m

• M/C Gauge: 1/12'' double side, 1/8" (one servo motor)

                                 1/4'' (indepedent yarn control)

• Pile height: 2.5-9mm

• Mechanical speed: 1000RPM

• Stitch rate: 25-60 stitches/10cm

• Total power ref.: 2m-40kw

                             4m-55kw

• Double sliding needle bar with cam

• Customized yarn feeding servo motor or custom 1/8 single yarn control option available

• Independent control yarn feeding

• Servo motor + planetary reducer feeding of primary back

• Puller roller control led by servo motor

• Pattern control software

• Operation setting on touch screen.

•

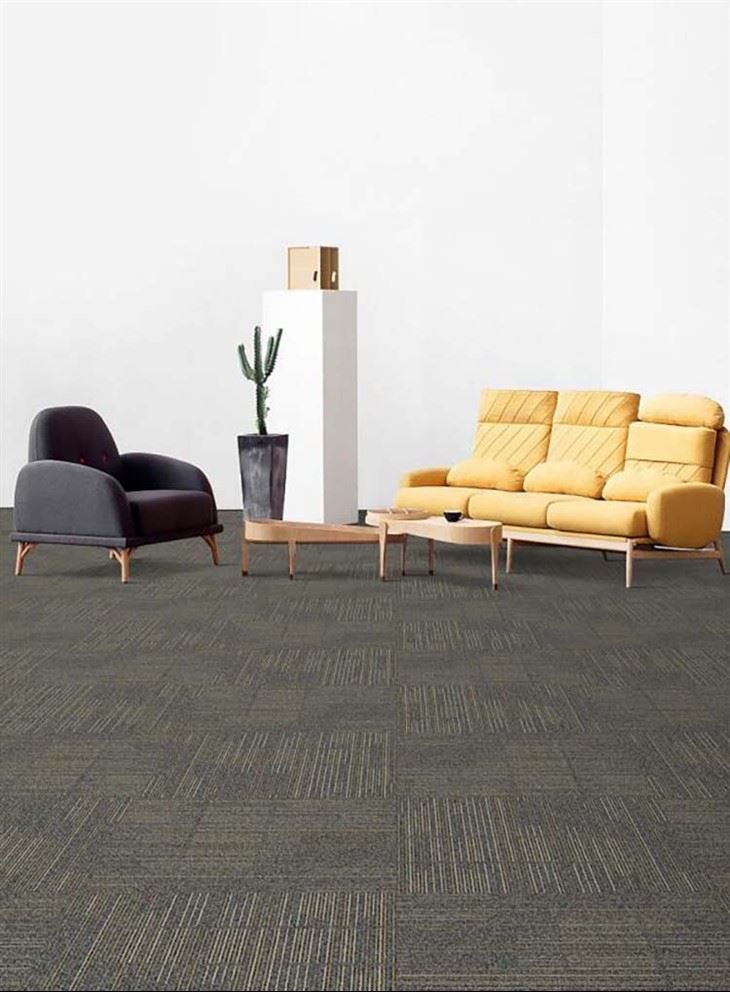

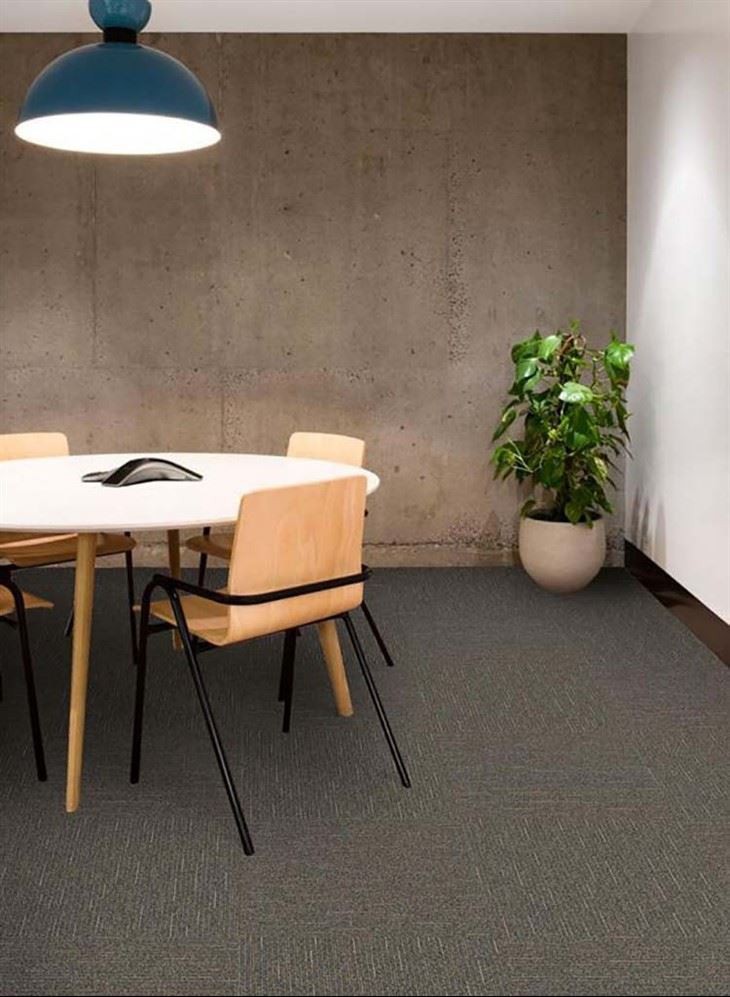

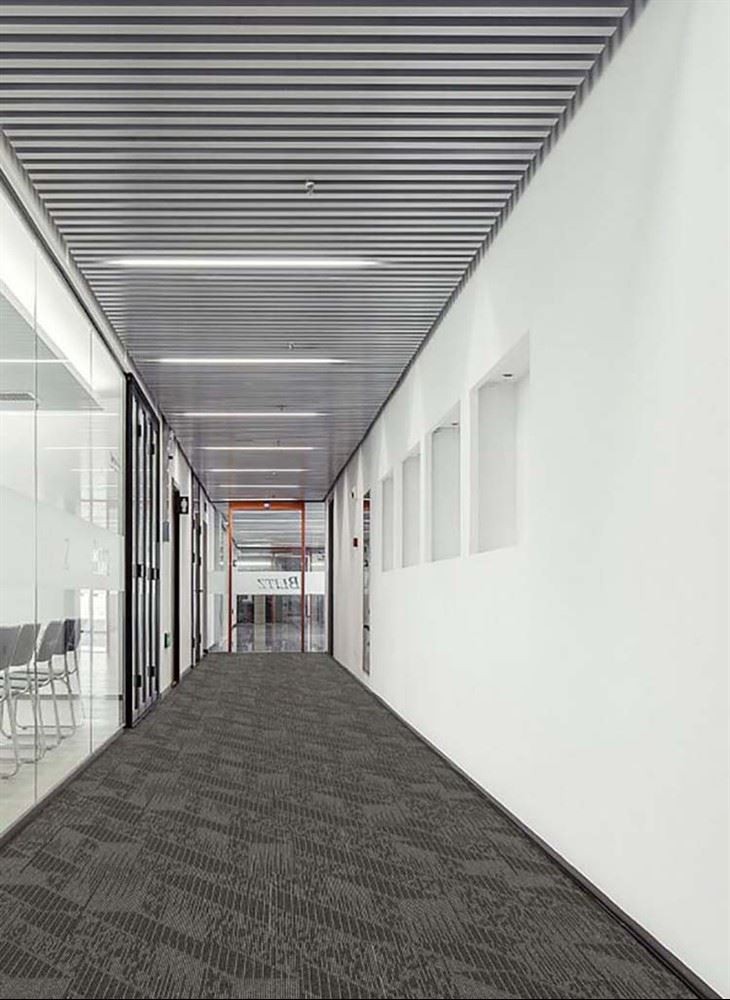

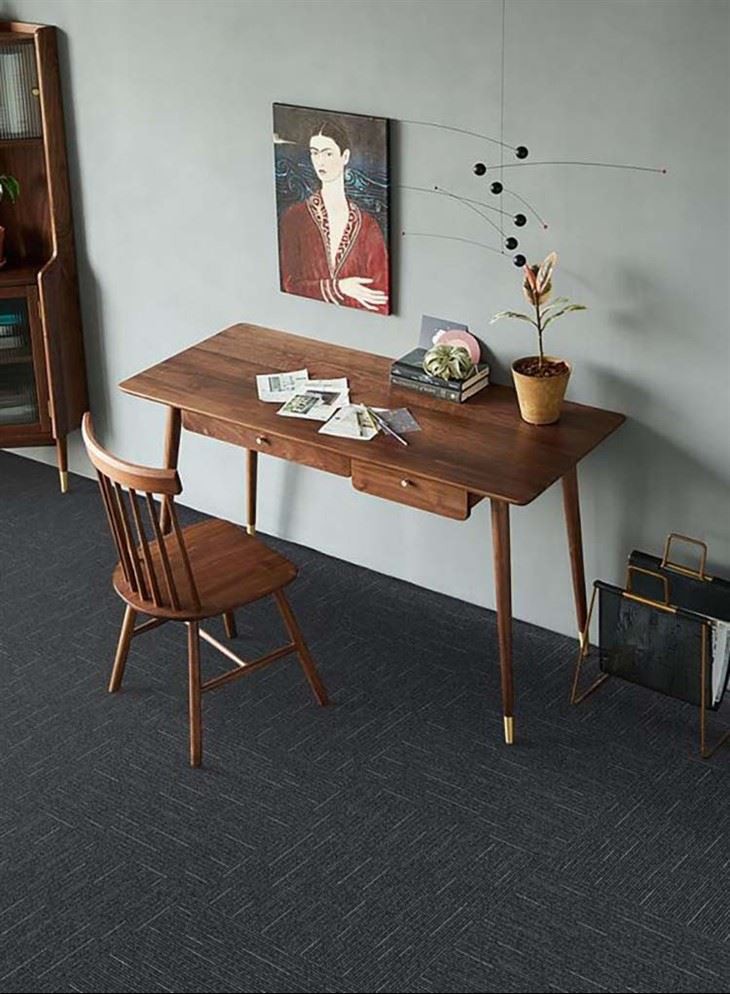

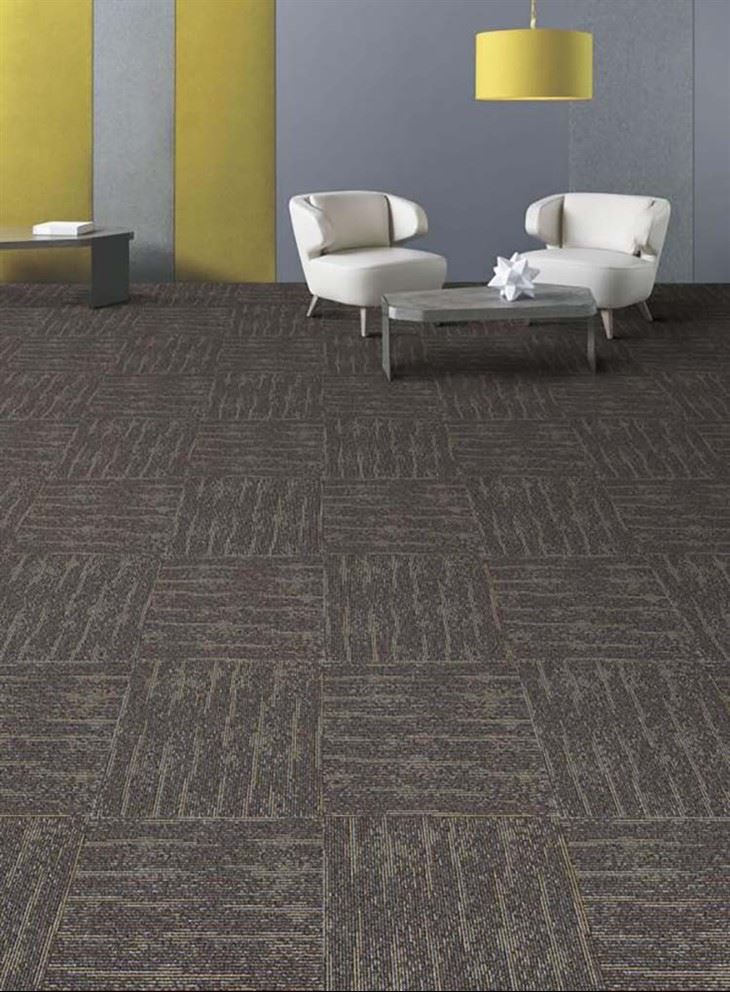

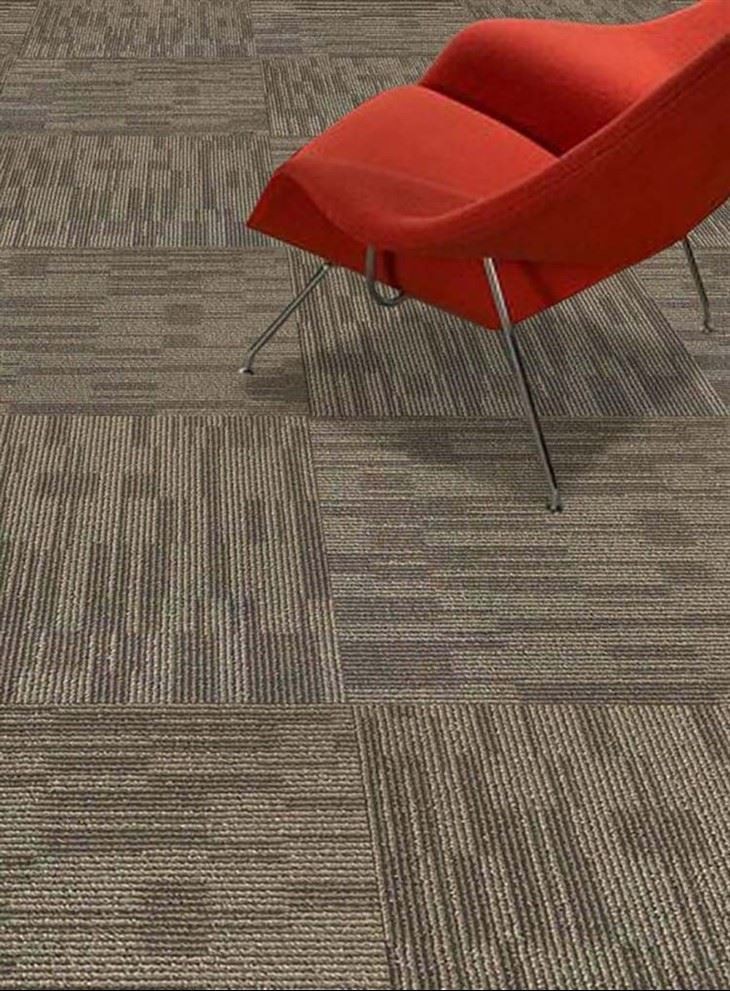

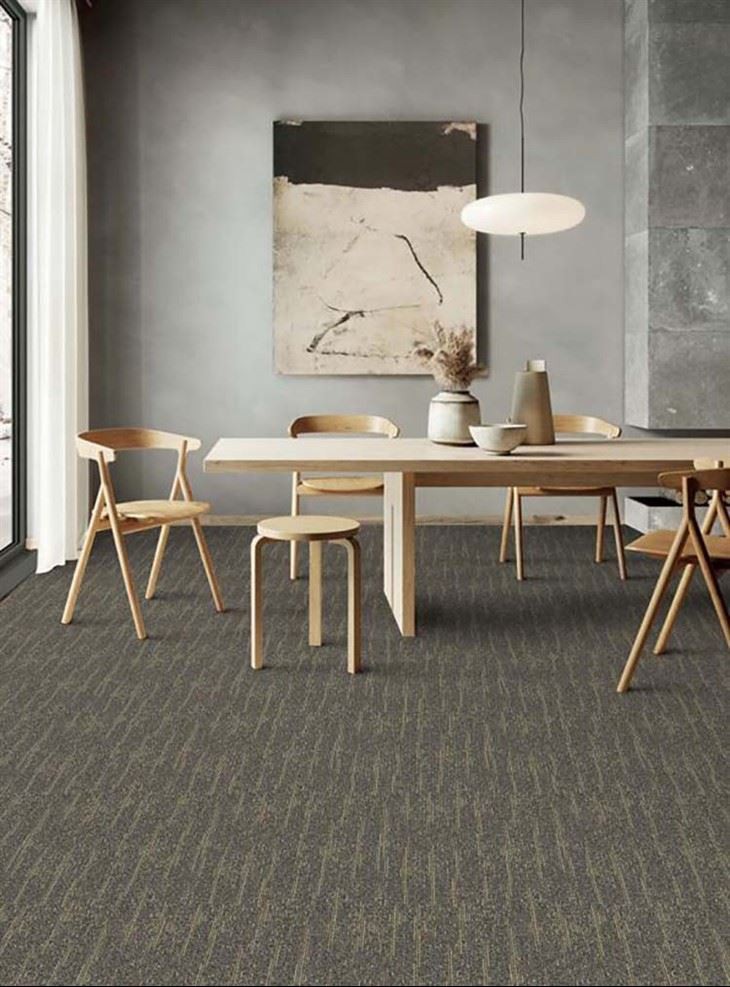

Application photos
