1/10'' Graphic

Introduction

This 1/10'' Multi-loop Graphic Tufting Machine obtains double sliding needle bar with servos. Each needle bar with 1/5'' gauge, which is 1/5''+1/5''.

It achives more colors in better density and pattern presentation, popular in carpet tile and wall to wall carpet applications.

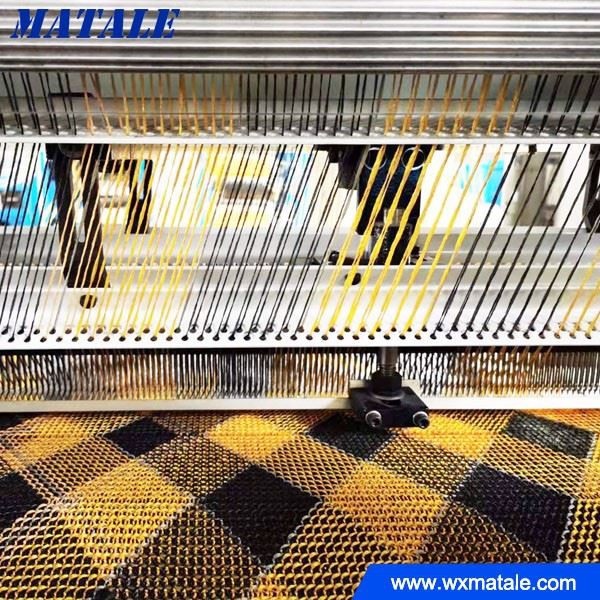

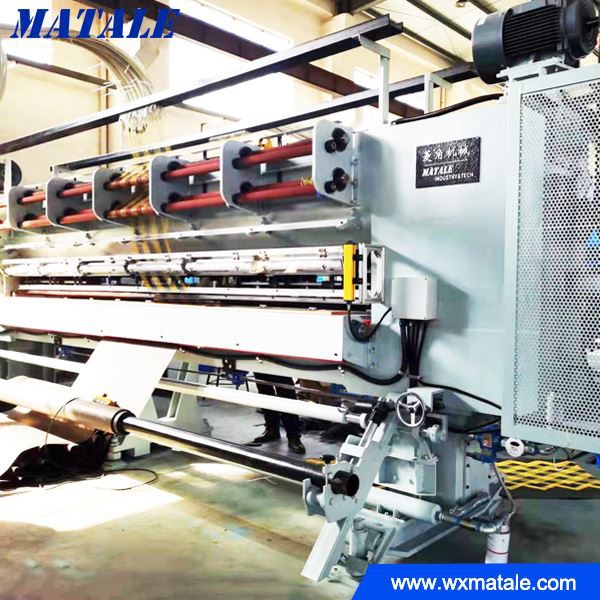

Product photos reference

Parameters

• Machine Name: 1/10'' Graphic Multi-loop Tufting Machine

• Machine size: L*W*H 8.6*1.5*2.5m

• Working door width: 4 meters

• Gauge: 1/5"+1/5" (both sides)

• Pile height: 2.5- 9mm

• Mechanical speed: 600 RPM

• Stitch rate: 25-60 stitches/10cm

• Total power: 45kw

• Double sliding needle bar with servos

• Max. pattern repeat 7.21inch

• Yarn feeding servos 2+2 or 3+3 or 4+4

• Servo motor + planetary reducer feeding of primary back

• Puller roller controlled by servo motor

• Pattern control software

• Operation setting on touch screen
