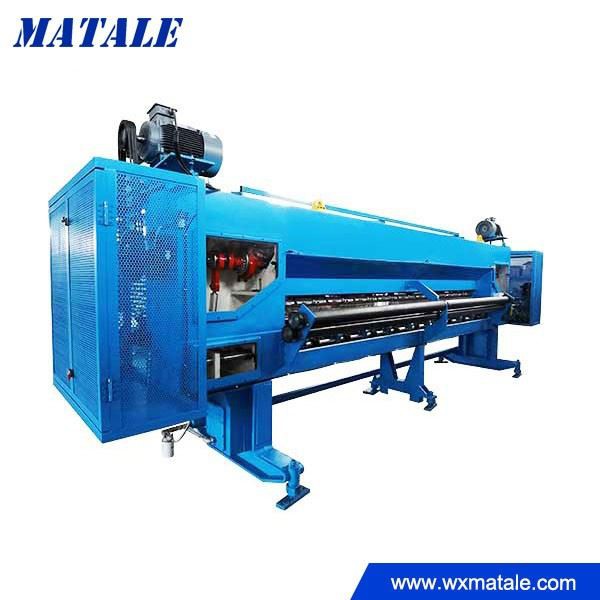

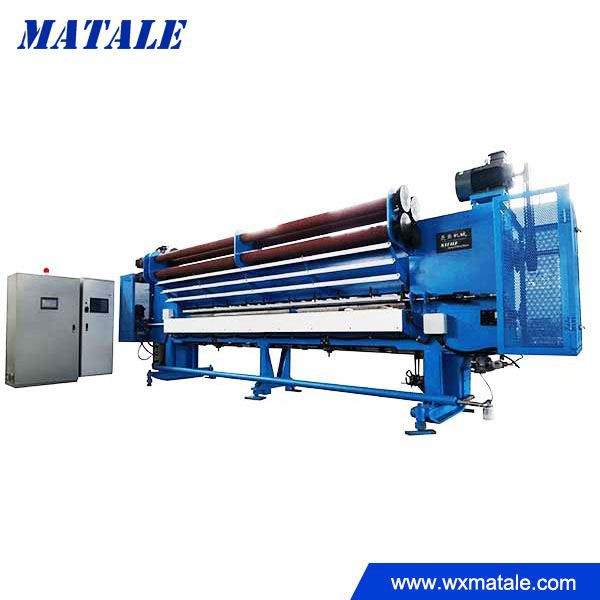

Our synthetic grass tufter is widely used for producing synthetic grass coverings for sports field, leisure flooring, commercial and residential landscape etc. Pile height can reach max. 65mm.
Description
This synthetic grass tufter is widely used for producing synthetic grass coverings for sports field, leisure flooring, commercial and residential landscape etc. Pile height can reach max. 65mm.
Parameters
Machine size: L*W*H 7.8*1.5*2.3m
Working width: 4m
Gauge: 3/8", 5/8, 3/4", 3/16", 5/16"
Pile height: 20-65mm
Mechanical speed: 600 RPM
Stitch density: 10-50 stitches/10cm
Total power: 4m 45kw
Servo motor + planetary reducer feeding of primary back
Puller roller controlled by servo motor
Design control software
Operation setting on touch screen.
Product photos
Machine Feature
● Stable structure with no internal stress deformation by using cast frame and overall annealing treatment.
● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.
● Equipped with lifting rings , easy for movement.
● Air cylinder device for backing roll loading.
● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .
● By using 4 individual point s crews , machine can stand on all types of floors .
● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.
● Overload protection, cover protections , pull wire emergency stop switch.
● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

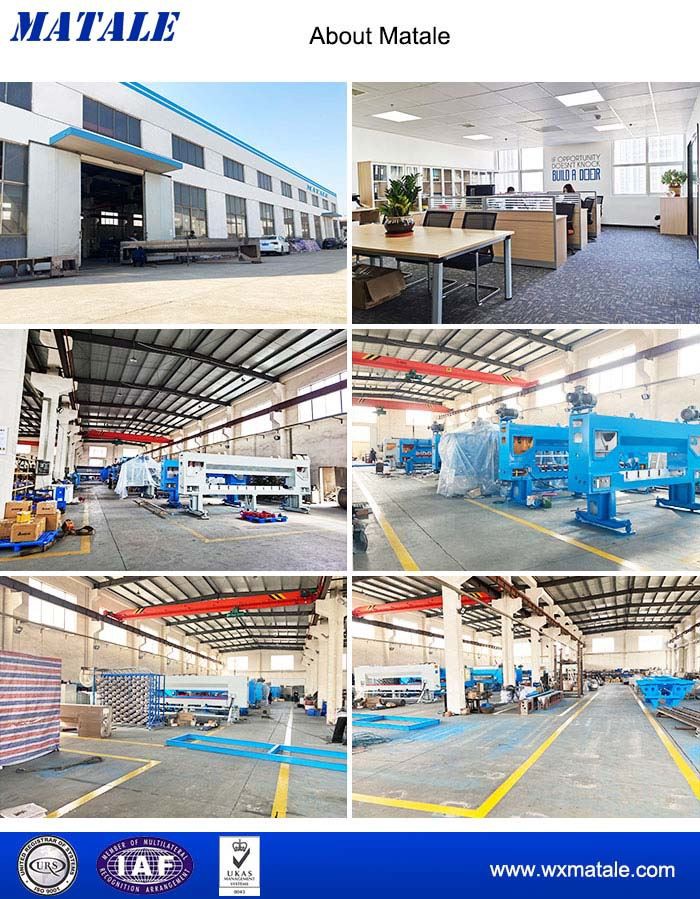

Company
Being set up in April 2010, Wuxi Matale Industry&Tech Co.,ltd rapidly develop as one of the top three carpet tufting machines manufacture in China. With innovation of professional products and the world class level sales team aiming to provide better service to our customers in the flooring industry.
Proudly made in China, Matale will always be committed to the research and development on all unique tufting machines and ancillary equipment.

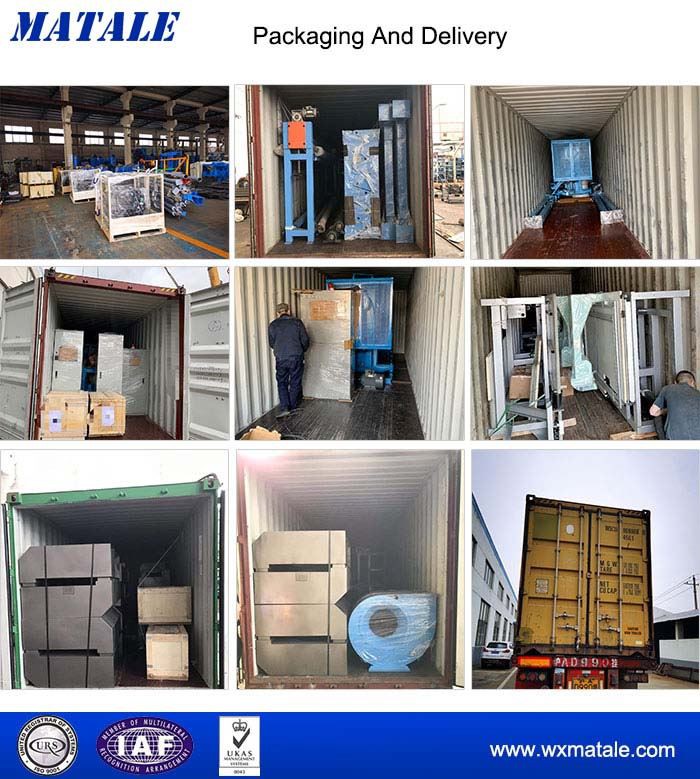

Packing and shipping
Packing details
1. Wrapping film with steel wire fixed for main machine
2. Wooden case or carton for small parts packing.
Shipping details
1. Test running before shipping
2. Strictly inner inspection before loading
3. Loading photos or videos provided
FAQ
Q: what can you buy from us?
A: Carpet tufting machines, carpet back coating machines, spare parts for the machines.
Q: How to get a quote for a synthetic grass back coating machine after buying a grass tufting machine?
A: We can provide full production line service for the whole production procedure, from artificail grass raw material source to artificial grass tufting and back coating and winding etc.
If you want to establish a new synthetic grass carpet manufacture or add an grass carpet produce line, just need to tell us your budget and expected production abiality etc., we will provide solution.
Q: why should you buy from us not from other suppliers?
1. More than decades years experience of manufacture and export on carpet machinery industry.
2.We have the integration resources of carpet machine industry, can give customer professional and valuable solutions.
3.Custom design ability.
4.Professional technical support team.
5.Always customer first.
Q: It's not convenient for me to go to China, but I want to see the condition of the machine in the factory. What should I do？
A: We support the production visualization service. The sales department who responds to your inquiry for the first time will be responsible for your follow-up work. You can contact him /her to go to the factory to check the production progress of the machine, or send you the sample pictures and videos you want. We support free sample service.
Q: I don’t know how to use after I receive Or I have problem during use,how to do?
A: 1) We have detailed user manual with pictures, you can learn step by step. And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use, we will give technical support until your problem is solved. We will be always at service, you can contact us by team viewer/Whatsapp/Email/Phone/Skype etc. If situation allows, we can also provide field maintenance service.
