1/6‘‘ and 1/6‘‘ multi-loop computerized tufting machine, which calls 6+6. This loop tufting machine allows you to make large flowing patterns with timeless patterns.It is widely used to produce wall to wall carpet tiles for contract and commercial market.
Introduction

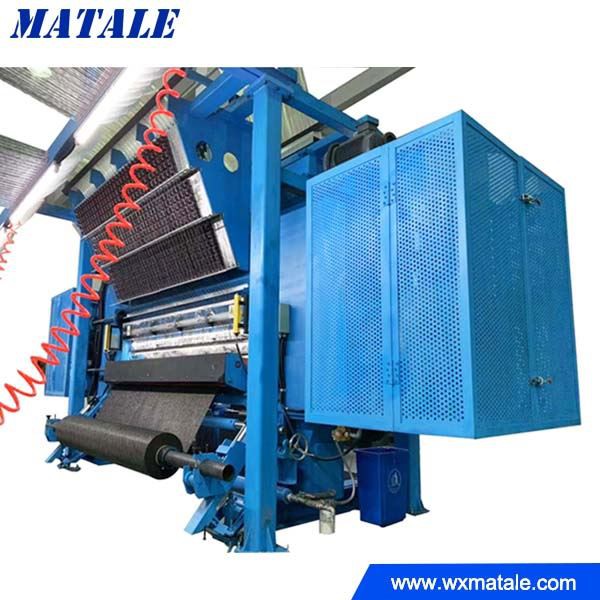

1/6'' and 1/6'' multi-loop computerized tufting machine, which calls 6+6.
This loop tufting machine allows you to make large flowing patterns with timeless patterns.It is widely used to produce wall to wall carpet tiles for contract and commercial market.
Parameters
Machine size: 2m-L*W*H6.6*2.2m*3m
4m-L*W*H8.6*2.2m*3m
Working width: 2m or 4m
M/C Gauge: 1/12'', 1/6" +1/6'' front and rear two needle bars
Pile height: 2.5-9mm
Mechanical speed: 1000RPM
Stitch rate: 25-60 stitches/10cm
Total power ref.: 2m-40kw
4m-55kw
Double sliding needle bar with cam
Customized yarn feeding servo motor
Independent control yarn feeding
Servo motor + planetary reducer feeding of primary back
Puller roller control led by servo motor
Pattern control software
Operation setting on touch screen.

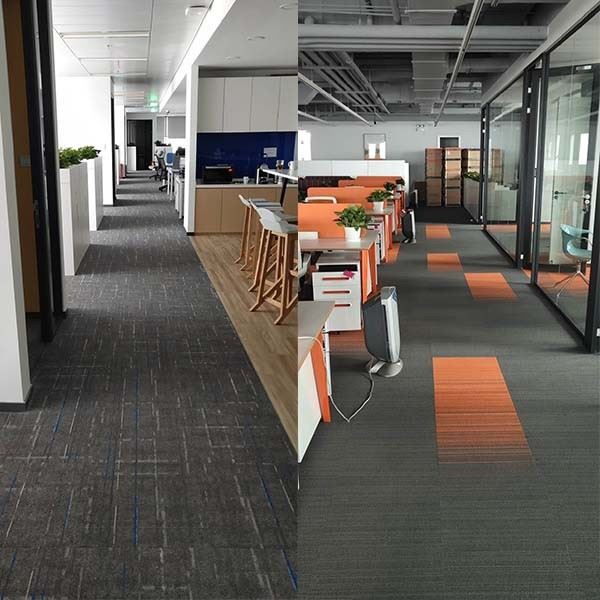

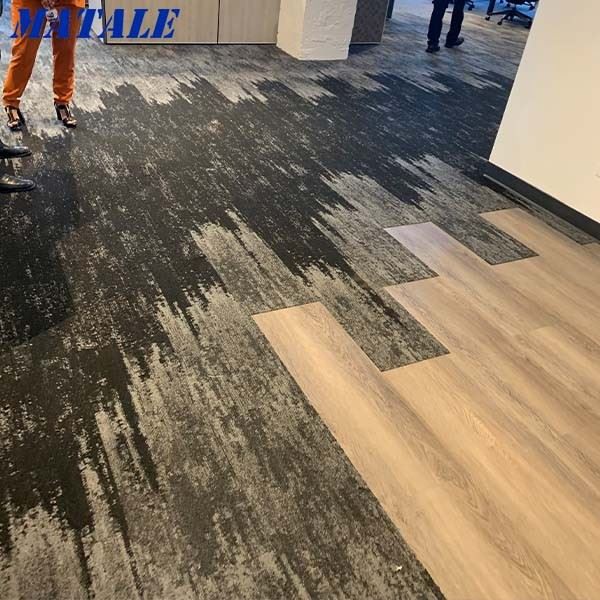

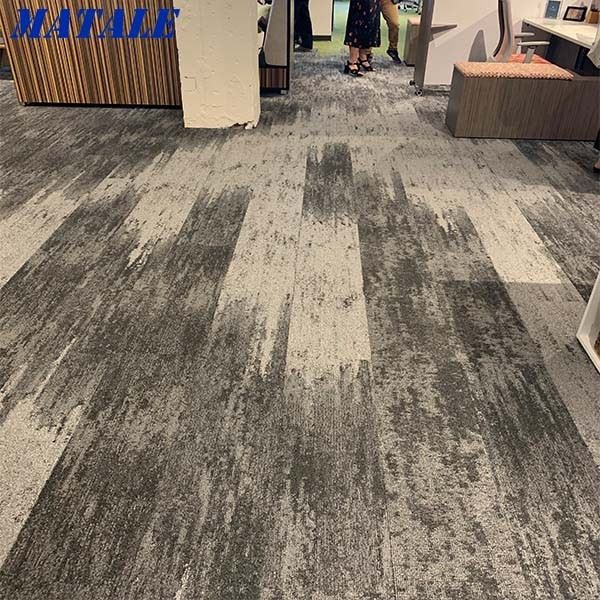

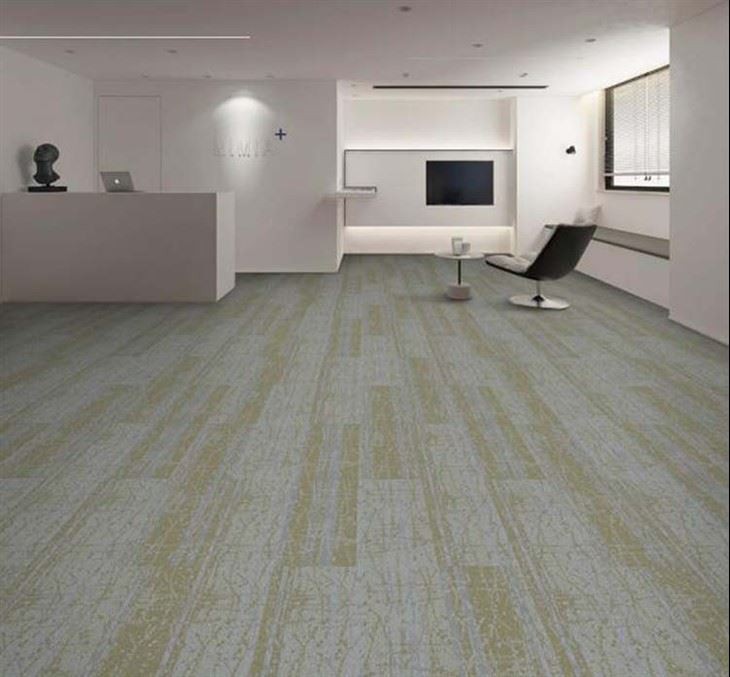

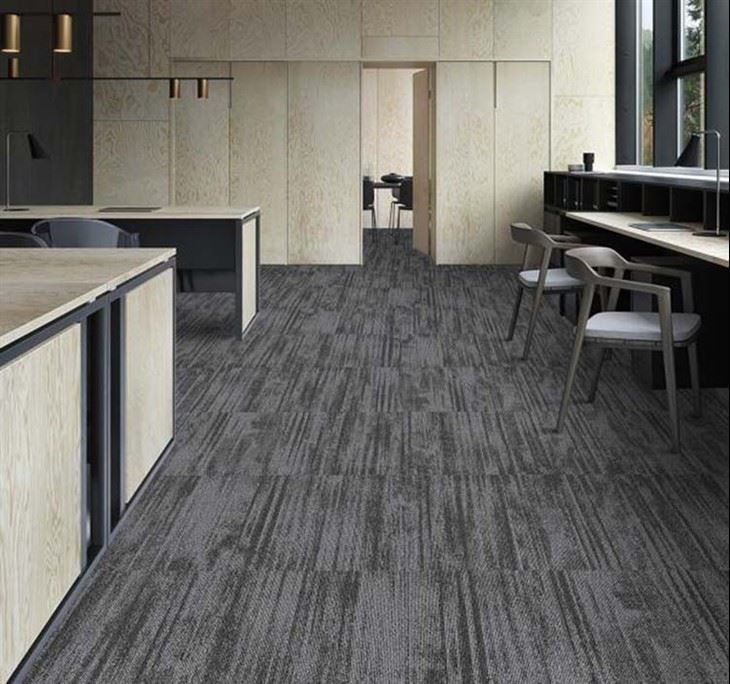

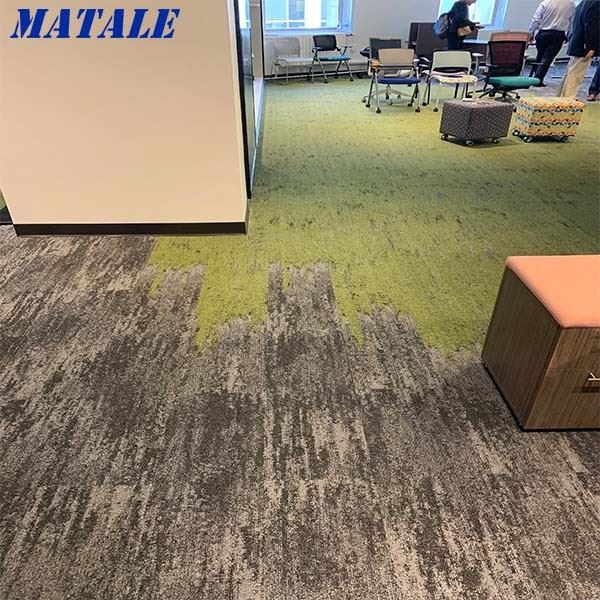

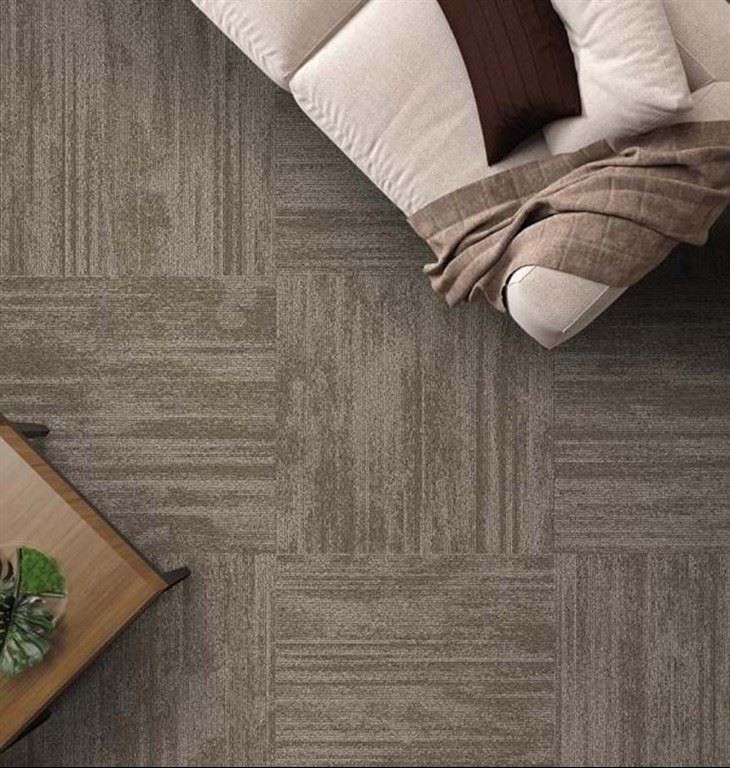

Application photos
