1/8 And 1/4 Gauge Pattern Loop Machine

Introduction

This 1/12 gauge pattern loop tufting machine is dual-gauge machine with 1/8'' gauge  loop pile base on the front and 1/4 gauge independent yarn control on the rear.

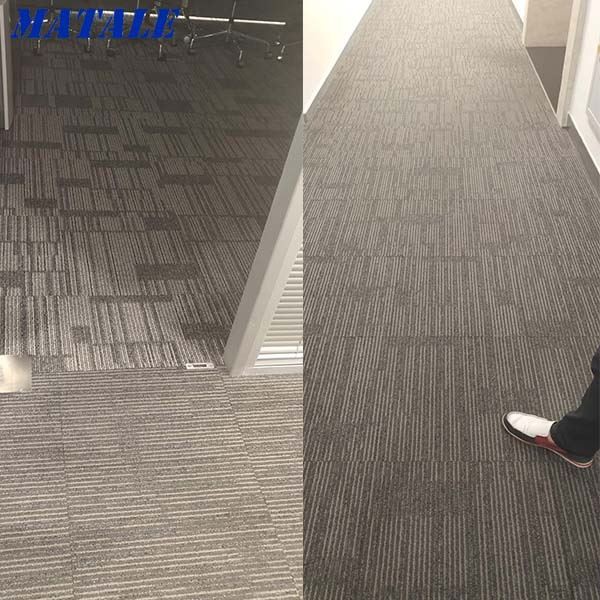

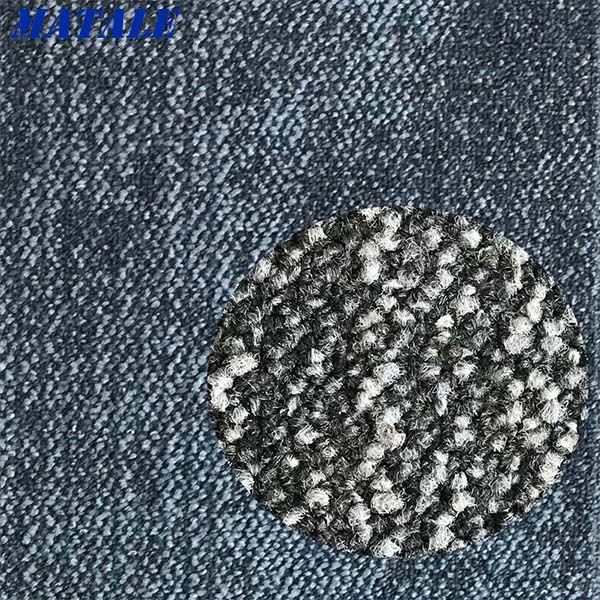

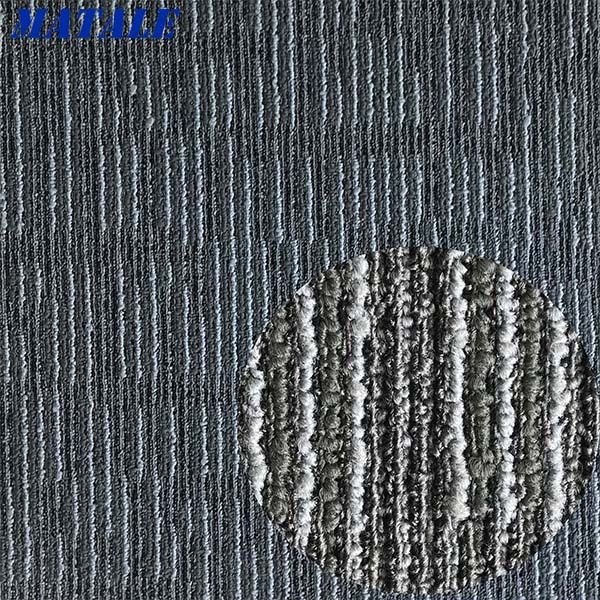

This pattern loop tufting machine can create any repeat size with free flowing patterns. It is widely used to produce wall to wall carpet tiles, it provides a dense and long-lasting product.

Parameters

• Machine size:

  2m L*W*H6.4*2m*2.8m

  4m L*W*H8.6*2m*2.8m

• Working width: 2m or 4m

• M/C Gauge: 1/12'' double side, 1/8" (one servo motor)

                                 1/4'' (indepedent yarn control)

• Pile height: 2.5-9mm

• Mechanical speed: 1000RPM

• Stitch rate: 25-60 stitches/10cm

• Total power ref.: 2m 40kw

                            4m 55kw

• Double sliding needle bar with cam

• Customized yarn feeding servo motor or custom 1/8 single yarn control option available

• Independent control yarn feeding

• Servo motor + planetary reducer feeding of primary back

• Puller roller control led by servo motor

• Pattern control software

• Operation setting on touch screen.



Advantage

-- High quality: Matale's 1/8 and 1/4 gauge pattern loop tufting machines are produced with stable structure with no internal stress deformation by using cast frame and overall annealing treatment.

-- Stability: Four independent foot screws ensure machine stability.

-- Easy relocation: Equipped with lifting rings.

-- High configuration: SKF bearing, GROZ gauge parts etc.

-- Safety operation: overload protection, cover protection, emergency stop pullswitch.

Thanks to these advantages, they offer the optimal quality and lifetime in addition to our carpet tufting machines.

Our carpet tufting machines will maximize your profits by increasing your patterns variety with lowest cost.

All Matale's customers gain on flexibility with all the services including technical support in case of installation problems.
