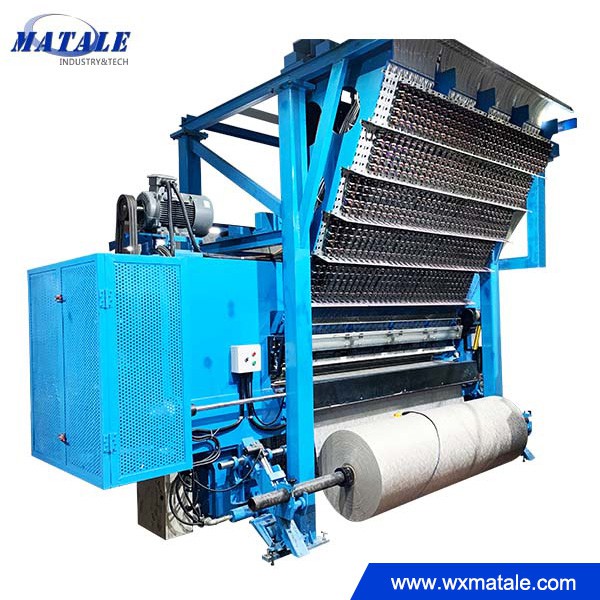

Multi Color Tufting Equipment

Introduction

This is loop pile jacquard tufting machine running with servo motors, maximum make 6 color design. Big improvement from traditional low loop burying tufting machine, more colors in better density and design presentation. Widely used for carpet tile and wall to wall carpet area.

Parameters

Machine name：Multi color tufting equipment

Machine size:

2m L*W*H6.2*2.5m*3m

4m L*W*H8.2*2.5m*3m

Working width: 2m or 4m

Gauge: 1/10" (single side)

1/12’’ M- color Plus (double-side)

Pile height: 2.5-9mm

Mechanical speed: 800-1000RPM

Stitch density: 25-50 stitches/10cm

Total power: 2m 45kw

4m 60kw

High speed sliding single needle bar with servo

C us to m i zed yarn feeding servo motor

Individual control yarn feeding

Servo motor + planetary reducer feeding of primary back

Roller puller control led by servo motor

Design control soft w are

Operation setting on touch screen.

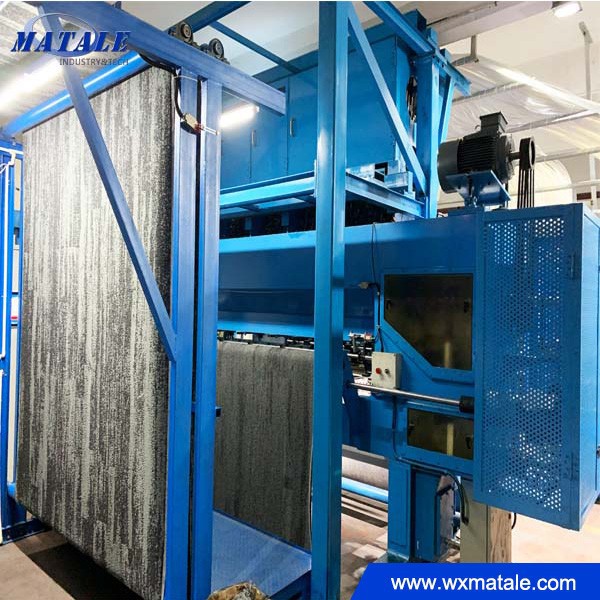

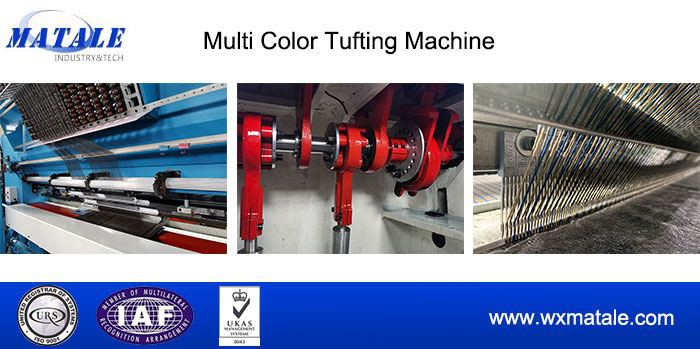

Product photos

Machine Feature

● Stable structure with no internal stress

● Deformation by using cast frame and overall annealing treatment.

● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.

● Equipped with lifting rings , easy for movement.

● Air cylinder device for backing roll loading.

● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .

● By using 4 individual point s crews , machine can stand on all types of floors .

● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.

● Overload protection, cover protections , pull wire emergency stop switch.

● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

Service

Pre-sale service

● Free inquiry

● Professional suggestion on tufting machine model choosing

● Full procedure solutions to establish a new carpet/rug factory

● Machine photos and video

● A formal offer

After-sale service

● Video technical support

● Online support

● Free spare parts

● Field installation, commissioning and training

● Field maintenance and repair service

Whole-life service

● Video technical support

● Online support

● Spare parts under compensation

● Field maintenance and repair service under compensation
