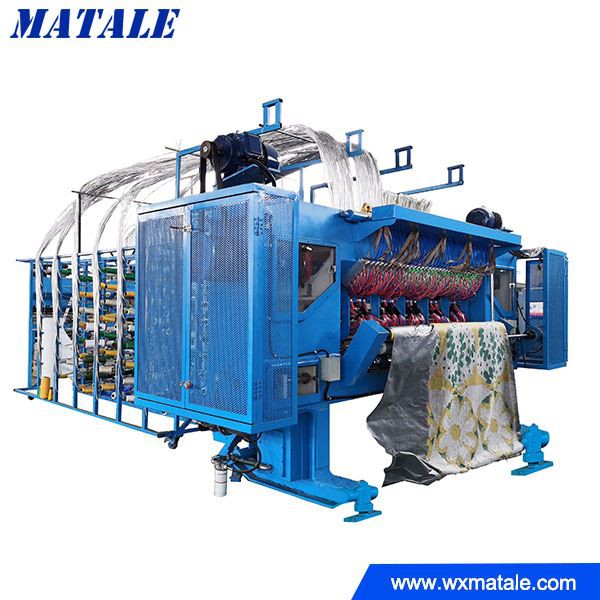

C-color tufting machine is designed to do multi-color cut pile patterns. It adopts individual needle control system as well as servo sliding needle bar system. It can pick up any color at any point as per design when running tufting, therefore not any loop or cut pile burying...
Introduction
C-color tufting machine is designed to do multi-color cut pile patterns. It adopts individual needle control system as well as servo sliding needle bar system. It can pick up any color at any point as per design when running tufting, therefore not any loop or cut pile burying required on multi color design, no yarn waste on pile.
It can be widely used to produce door mats, bathmats, carpet tiles and hand-made carpet in carpet industry and overtufting on carpets&embroidery on textile fabrics in textile industry.
Parameters
Machine size: 2m model L*W*H6.4*1.5*2.7m
4m model L*W*H8.3*1.5*2.7m
Working width: 2m or 4m
Gauge: 3/16'' or 5/32''
Pile height: 10-25mm
Mechanical speed: max. 400RPM
Stitch rate: 25-50 stitches/10cm
Yarn: 1200~3000D twisted yarn or cotton yarn
Total power: 2m 35kw 4m 45kw
Machine Feature
● Sliding single needle bar with servo
● Servo motor and planetary reducer feeding of primary back
● Air cylinder + solenoid valve group control needle rod
● Individual needle control, can make special shaped carpet and save yarns
details-1
details-2
details-3
Reference Pattern Photo
About Us
Matale, proudly made in China, will always be committed to the research and development on all unique tufting machines and ancillary equipment. Our reliable product quality standard system have brought customers worldwide and we will continue our reputable to meet the market demands. Matale has full range of tufting machines from basic plain loop, plain cut series, multi loop series, LCL FRS series, ICN series and other patterning tailer-made machines for all applications from wall to wall, residential and contracted tiles.
Shipping and Loading
main machine load into container direct, good fixed
Parts packed by wooden box
