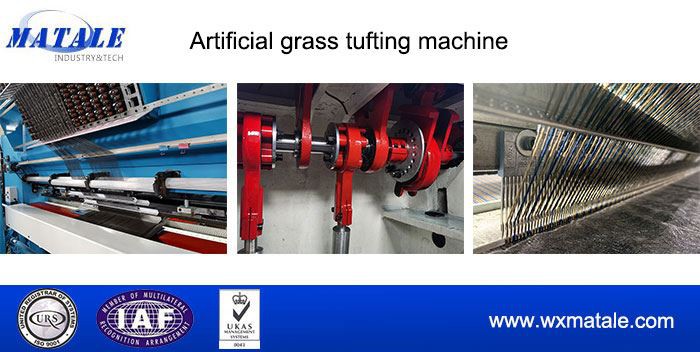

Artificial Grass Tufting Machine

Parameters

Machine size: L*W*H 7.8*1.5*2.3m

Working width: 4m

Gauge: 3/8", 5/8, 3/4", 3/16", 5/16"

Pile height: 20-65mm

Mechanical speed: 600 RPM

Stitch density: 10-50 stitches/10cm

Total power: 4m 45kw

Servo motor + planetary reducer feeding of primary back

Roller puller controlled by servo motor

Design control software

Operation setting on touch screen.

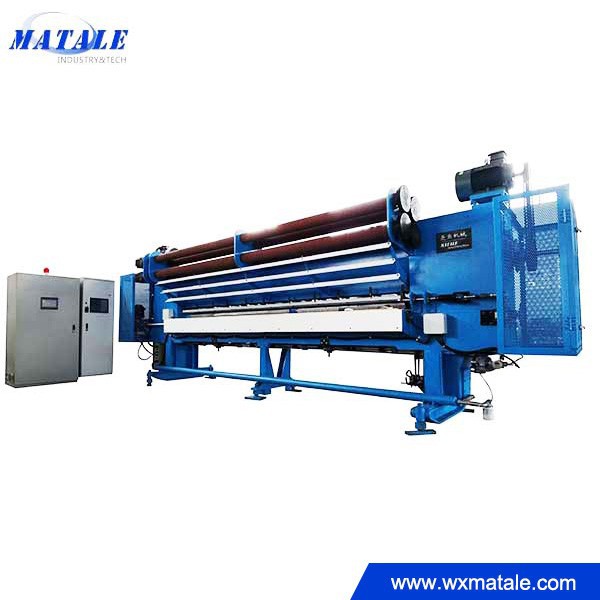

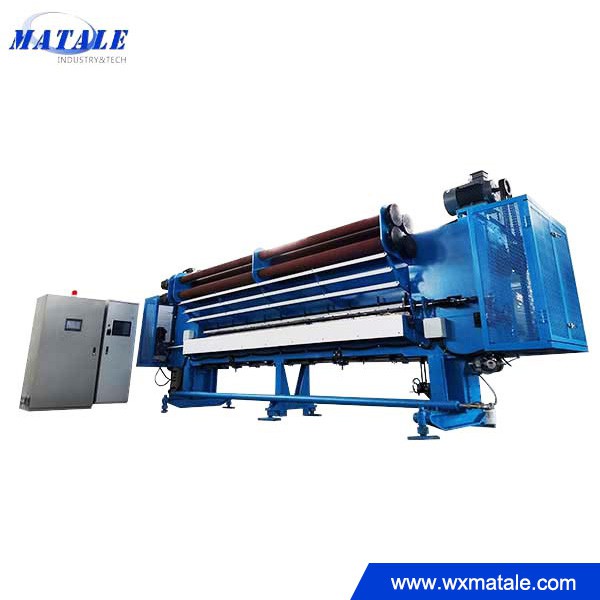

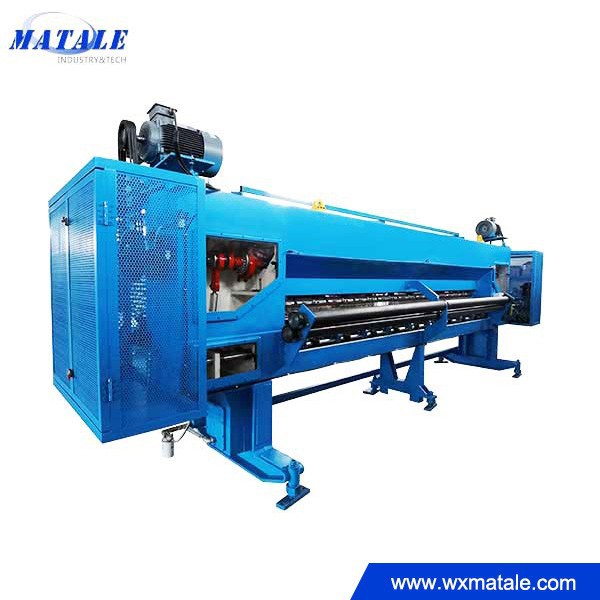

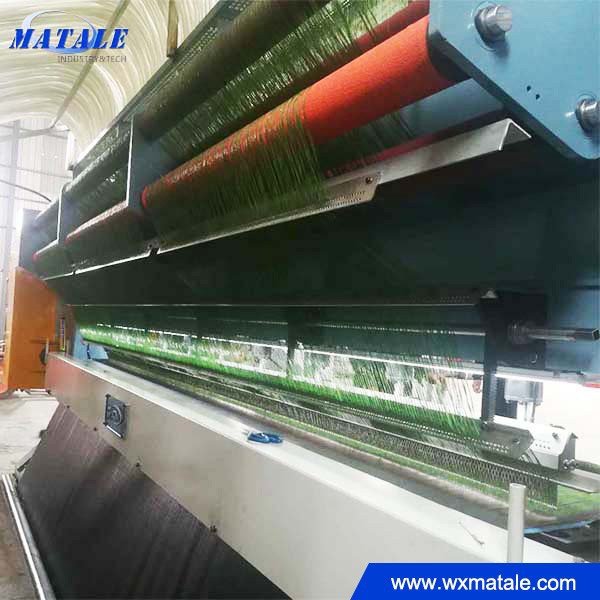

Product photos

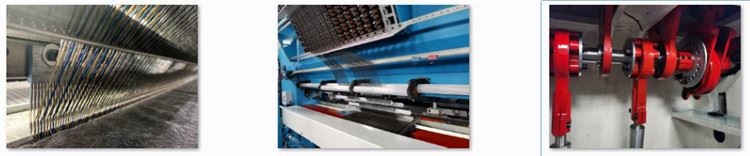

Machine Feature

● Stable structure with no internal stress

● Deformation by using cast frame and overall annealing treatment.

● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.

● Equipped with lifting rings , easy for movement.

● Air cylinder device for backing roll loading.

● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .

● By using 4 individual point s crews , machine can stand on all types of floors .

● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.

● Overload protection, cover protections , pull wire emergency stop switch.

● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

Company

WUXI MATALE INDUSTRY&TECH CO.,LTD IS PROFESSIONAL DESIGNING AND MANUFACTORY OF CARPET TUFTING AND BACK COATING MACHINES IN CHINA.
WITH MANY YEARS EXPERIENCE OF SALES IN CHINA AND ABROAD, OUR MACHINES WON BIG MARKET SHARE AND GOOD REPUTATION. COMMOTTED TO THE RESEARCH AND DEVELOPMENT OF ALL KINDS OF TUFTING MACHINE AND ANCILLARY EQUIPMENT, NOW MATALE HAS FULL RANGE OF TUFTING MACHINES, INCLUDING CUT AND LOOP PILE SERIES, MULTI-LOOP SERIES, FRS SERIES AND MULTI-NEEDLE ICN SERIES ETC.

OUR MACHINES ARE WIDELY USED FOR CAR- PET TILES, WALL TO WALL CARPET, PRINT CARPET, AREA RUGS , BATH MAT, DOOR MAT AND ARTIFICIAL GRASS ETC.
WE HOPE TO CREATE A BRIGHT FUTURE WITH FRIENDS FROM ALLOVER THE WORLD.

Service

Pre-sale service

● Free inquiry

● Professional suggestion on tufting machine model choosing

● Full procedure solutions to establish a new carpet/rug factory

● Machine photos and video

● A formal offer

After-sale service

● Video technical support

● Online support

● Free spare parts

● Field installation, commissioning and training

● Field maintenance and repair service

Whole-life service

● Video technical support

● Online support

● Spare parts under compensation

● Field maintenance and repair service under compensation

Packing and shipping

Packing details

1. Wrapping film with steel wire fixed for main machine

2. Wooden case or carton for small parts packing.

Shipping details

1. Test running before shipping

2. Strictly inner inspection before loading

3. Loading photos or videos provided

FAQ

Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union etc.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIP, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Modes of shipment?
A 4: By sea or railway.

Q 5: Warranty?
A 5: One year. Will offer after sell service in whole life of machine use under compensation after one year.
Q 6: Installation and training?
A 6: There is technical and installation support in India. Other countries, paid overseas engineering service provided.
