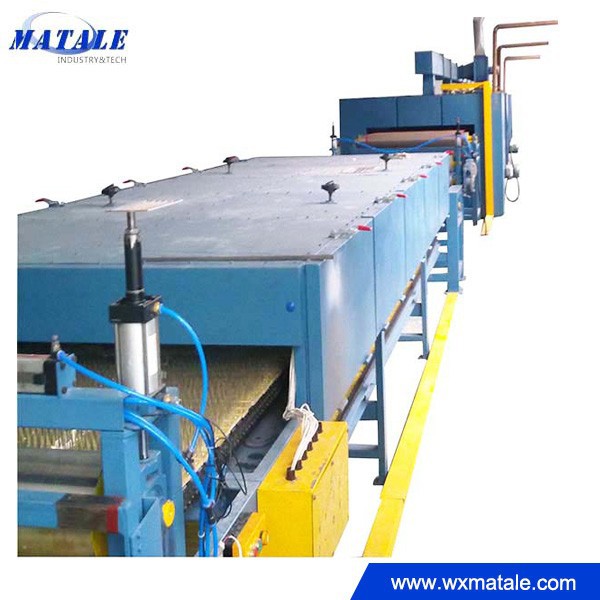

Latex Back Coating Machine

Introduction

This Latex back coating machine is specially designed for table top tufted, hand tufted carpet/mat backside latex coating treatment. With highly automatic system, it can make the backside more even and save a lot of labor cost for user.

Parameters:

Machine Length: Approx 46000 mm

Heating Chamber Length: 4000 mm X 6 set = 24000 mm

Vulcanization Length: 8000 mm

Working Width : 1300 mm

Convey & Embossing width : 1500 mm

Cooling system by fan

Foamer model: G20-2, capacity: 600 kg/h ; Including Part C pump and water cooling.

Embossing design: optional (can be three design together)

Machine runs by heat transfer oil/steam/gas

Working temperature: 180 degree in case of oil or gas , 130 degree by steam

Assumed working speed: 1-5 meters/min (depend on latex quality)

Heating chamber motor power: 3.0 kw

Vulcanization power: 60 kw

Total power: around 90 kw

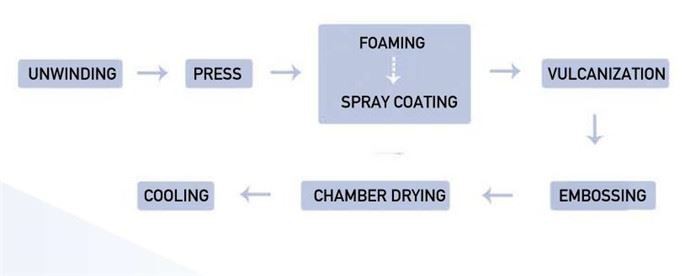

GENERAL PROCESS INDICATION:

MACHINE MAJOR EQUIPMENT BRAND AND DETAILS:

Heating chamber motor: SIEMENS

Heater temperature control valve: BAELZ

Relays: OMRON

Frequency converter : SCHNEIDER

Machine material quality as per China National Standard

Product photos:

FAQ

1. Q:How can i get to your factory?

A:Our factory is near shanghai Airport, we can pick you up in the airport.

2. Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?

A:It’s always my pleasure, hotel booking service is available.

3. Q:What is your minimum order quantity?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

4. Q:What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 60~90 days, customized machine will be delivered as the negotiation with our clients.
