This hot melt back coating machine is composed by the coating machine part and melting part. Different from the traditional underneath roller coating, this improved one adopts upper roller coating method, which has advantage of saving hot melt consumption, visualization and...
Introduction

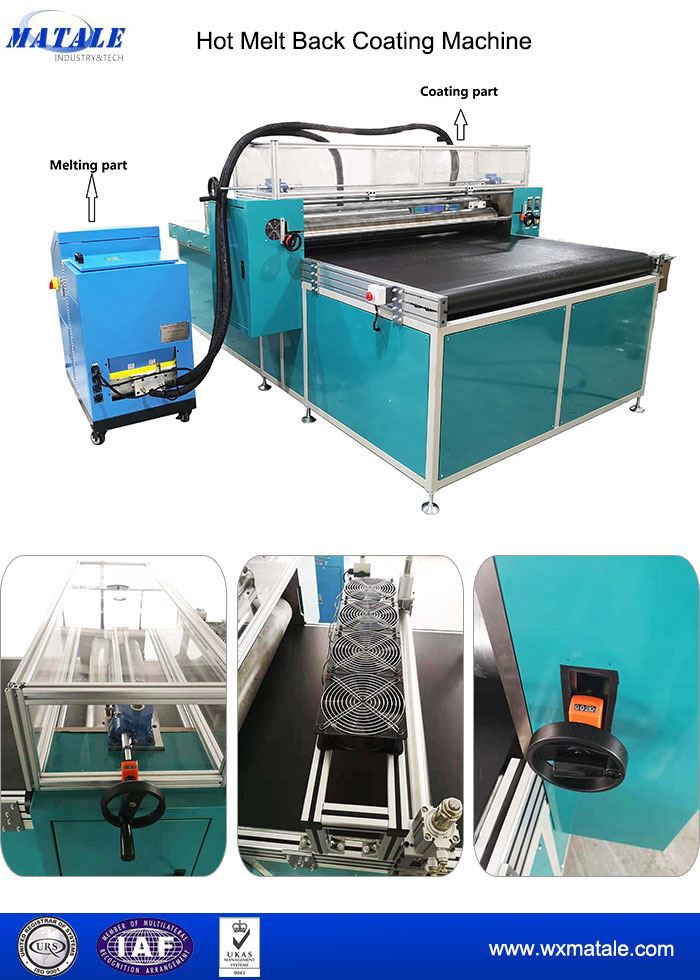

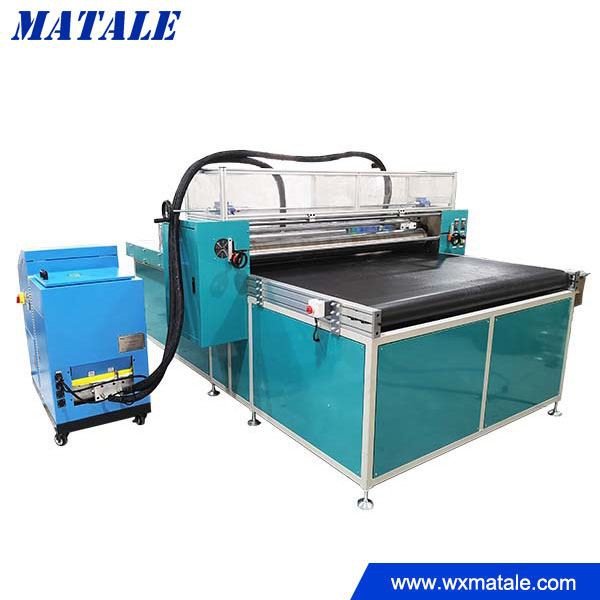

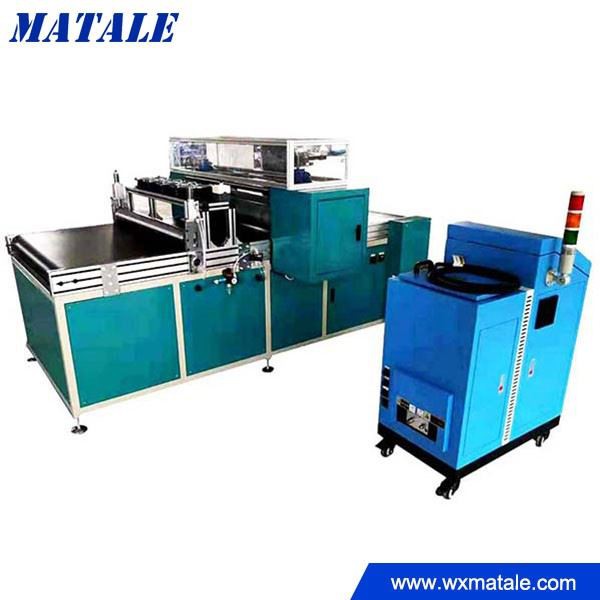

This hot melt back coating machine is composed by the coating machine part and melting part.
Different from the traditional underneath roller coating, this improved one adopts upper roller coating method, which has advantage of saving hot melt consumption, visualization and easy operation.
Parameters for Coating Part:
Coating part | Name | MTHM-D1000 coating machine | MTHM-D1600 coating machine |
Working width | 1000mm | 1600mm | |
Supply electricity | 380V | 380V | |
Machine power | 7.8W | 11.8W | |
Operation temperature | ≤250℃ | ≤250℃ | |
Capability | 5kgs | 16kgs | |
Coating speed | 5KG/H | 12KG/H | |
Machine weight | 600kgs | ||
Machine size | 3800*1560*1280mm | 1860*1650*1300mm |
Parameters for Melting Part:
MTHM-D1000 | MTHM-D1600 | ||
Melting part | Name | 30kgs melting machine | 60kgs melting machine |
Style | MTRX-830 | MTRX-860 | |
Max. hot melt output | 30KG/H | 60KG/H | |
Hot melt output tubes | 2 tubes or 4 tubes | 2 tubes or 4 tubes | |
Operation temperature | normal~230℃ | normal~230℃ | |
Required environment temperature | -20℃~60℃ | -20℃~60℃ | |
Temperature control precision | ±1℃ | ±1℃ | |
temperature sensor | Pt100 or K-style thermocouple | Pt100 or K-style thermocouple | |
Supply power | 3 phase, 80V/50HZ | 3 phase, 380V/50HZ | |
Max. power of machine | 12KW | 12KW | |
Working air pressure | 0.4~0.8MPa | 0.4~0.8MPa | |
Weight | 108KGS | 138KGS | |
Size | 880*480*940mm | 900*525*1080mm |
Application
This mat hot melt coating equipment is mainly used for making mats or towels piece by piece such as bathmats, door mats etc.
Mats or towels with hot melt backing allows machine wash.
FAQ
Q : Warranty?
A : One year. Will offer after sell service in whole life of machine use under compensation after one year.
Q : Installation and training?
A : There is technical and installation support in India. Other countries, paid overseas engineering service provided.
