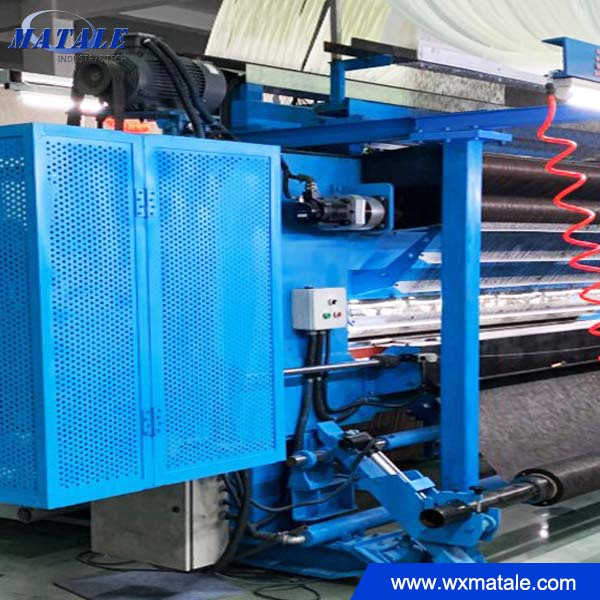

Graphic Tufting Machine

Introduction

Matale Industry& Tech is a professional design and manufacturer of China's carpet making machines, such as carpet tufting machines, Rug tufting machines,carpet back coating machines and tufting gauge parts etc.

Parameters

Machine Name:Graphic cut pile tufting machine

Machine size: L*W*H 8.6*1.5*2.5m

Working door width: 4 meters

Stitch length: 1/5"+1/5" (both sides)

Pile height: 2.5- 9mm

Mechanical speed: 600 RPM

Stitch density: 25-60 stitches/10cm

Total power: 45kw

Double sliding needle bar with servos

Maximum sliding 18 steps

Yarn feeding servos 2+2 or 3+3 or 4+4

Servo motor + planetary reducer feeding of primary back

Roller puller controlled by servo motor

Design control software

Operation setting on touch screen

Application

This model of Graphic tufting machine is specially designed for carpet tile and wall to wall carpet, with good stability and high output.

Machine Feature

● Stable structure with no internal stress

● Deformation by using cast frame and overall annealing treatment.

● Needle beam driver adopts 70mm modulating shaft, with gear meshing balance shaft.

● Equipped with lifting rings , easy for movement.

● Air cylinder device for backing roll loading.

● High configuration of mechanical parts like SKF bearing, Groz gauge part s etc .

● By using 4 individual point s crews , machine can stand on all types of floors .

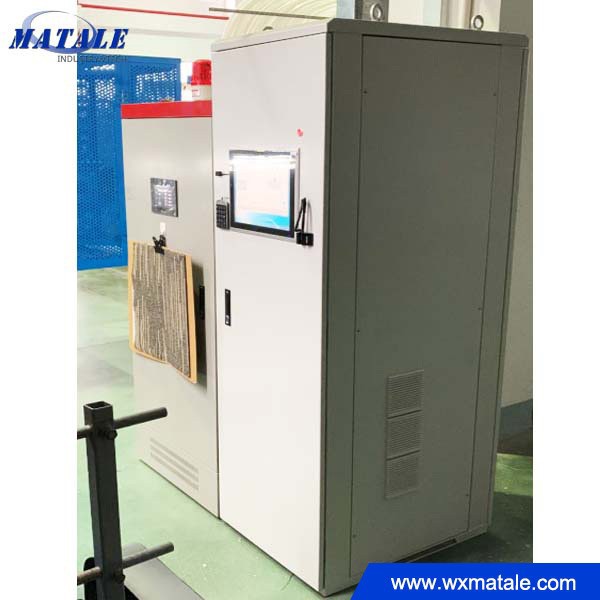

● Equipped with Touch screen, Siemens PLC , individual power and computer cabinet.

● Overload protection, cover protections , pull wire emergency stop switch.

● Servo control backing feeding, planetary reducer control of machine driving makes machine running with big torque stably.

FAQ

1. Q:How can i get to your factory?

A:Our factory is near shanghai Airport, we can pick you up in the airport.

2. Q:If i will need to stay in your place for few days, is that possible to book the hotel for me?

A:It’s always my pleasure, hotel booking service is available.

3. Q:What is your minimum order quantity?

A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

4. Q:What is the delivery time of your machine?

A:In general, the delivery time of our machine is about 60 days, customized machine will be delivered as the negotiation with our clients.
