Cut pile carpet tufting machine which we also name it PLC based carpet tufting machine with servo control of pile height, this machine is widely used to produce dyed or print base for carpet or produce artificial grass for sports or landscape.
Introduction
Cut pile carpet tufting machine which we also name it PLC based carpet tufting machine with servo control of pile height, this machine is widely used to produce dyed or print base for carpet or produce artificial grass for sports or landscape.
Parameters of Cut Pile Carpet Tufting Machine
Machine size:
2m L*W*H5.8*1.5m*2.5m
4m L*W*H7.8*1.5m*2.5m
Working width: 2m or 4m
Gauge: 5/32" or 1/8" or 1/10" or 5/64"
Cut pile height range: 2.5-9mm
Mechanical speed: 1000RPM
Stitch density: 25-60 stitches/10cm
Total power: 2m 28kw
4m 40kw
Optional sliding needle bar or jute mover
Servo motor + planetary reducer feeding of primary back
Roller puller controlled by servo motor
Operation setting on touch screen

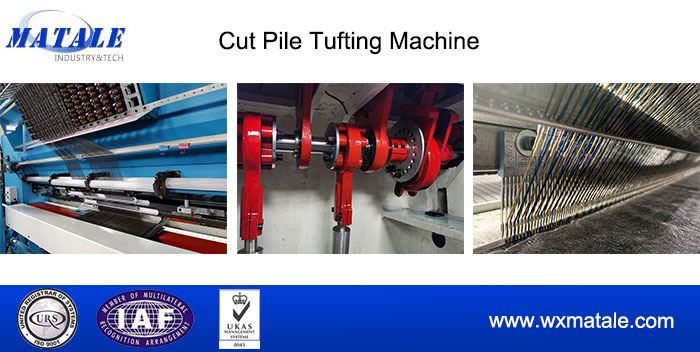

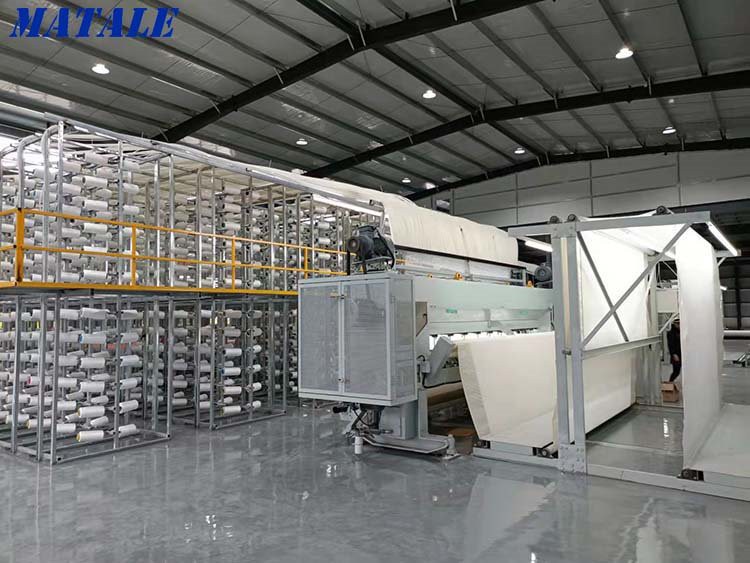

Detailed reference photos
Our Company
Matale is a professional tufting machine manufacturer who has been in business for more than 10 years. We specialize in providing customers with the best machines and services available in the flooring industry.
FAQ
Q 1: Warranty?
A 1: One year. Will offer after sell service in whole life of machine use under compensation after one year.
Q 2: Installation and training?
A 2: There is technical and installation support in India. Other countries, paid overseas engineering service provided.
Q 3: Main difference between cut pile tufting machine for carpet and for artificial grass?
A 3: Different pile ranges.
Cut pile tufting machine for carpet, pile ranges 2.5 to 9mm with speed of max.1000rpm.
Artificial grass tufting machine, pile ranges from 20~65mm with speed of max.600rpm.
